Applies to: Circuit

Using Novation Components, you can download individual Samples, Patches, and Sessions from your Circuit as well as the whole Pack to your computer.

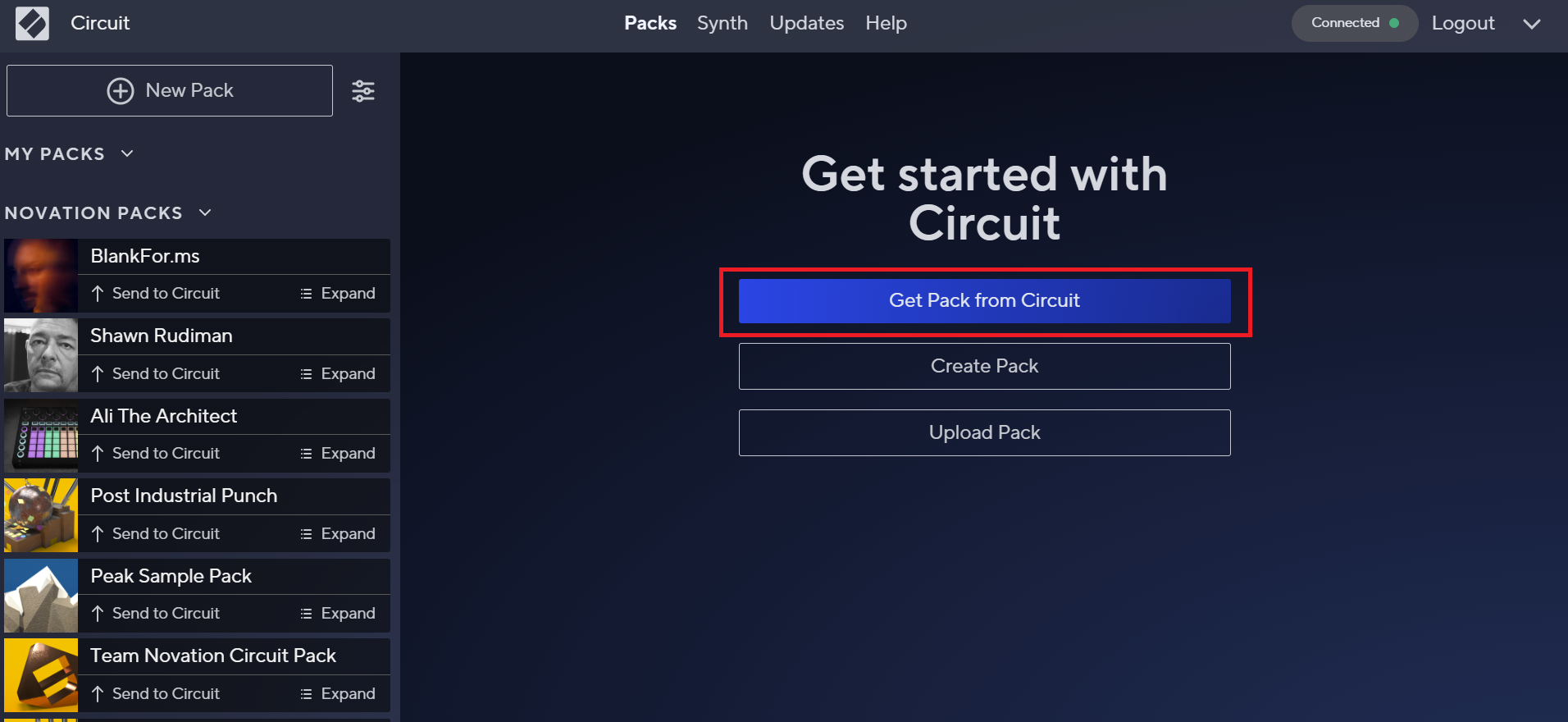

First, send the Pack from your Circuit to the Components with the “Get Pack from Circuit” option on the Packs screen.

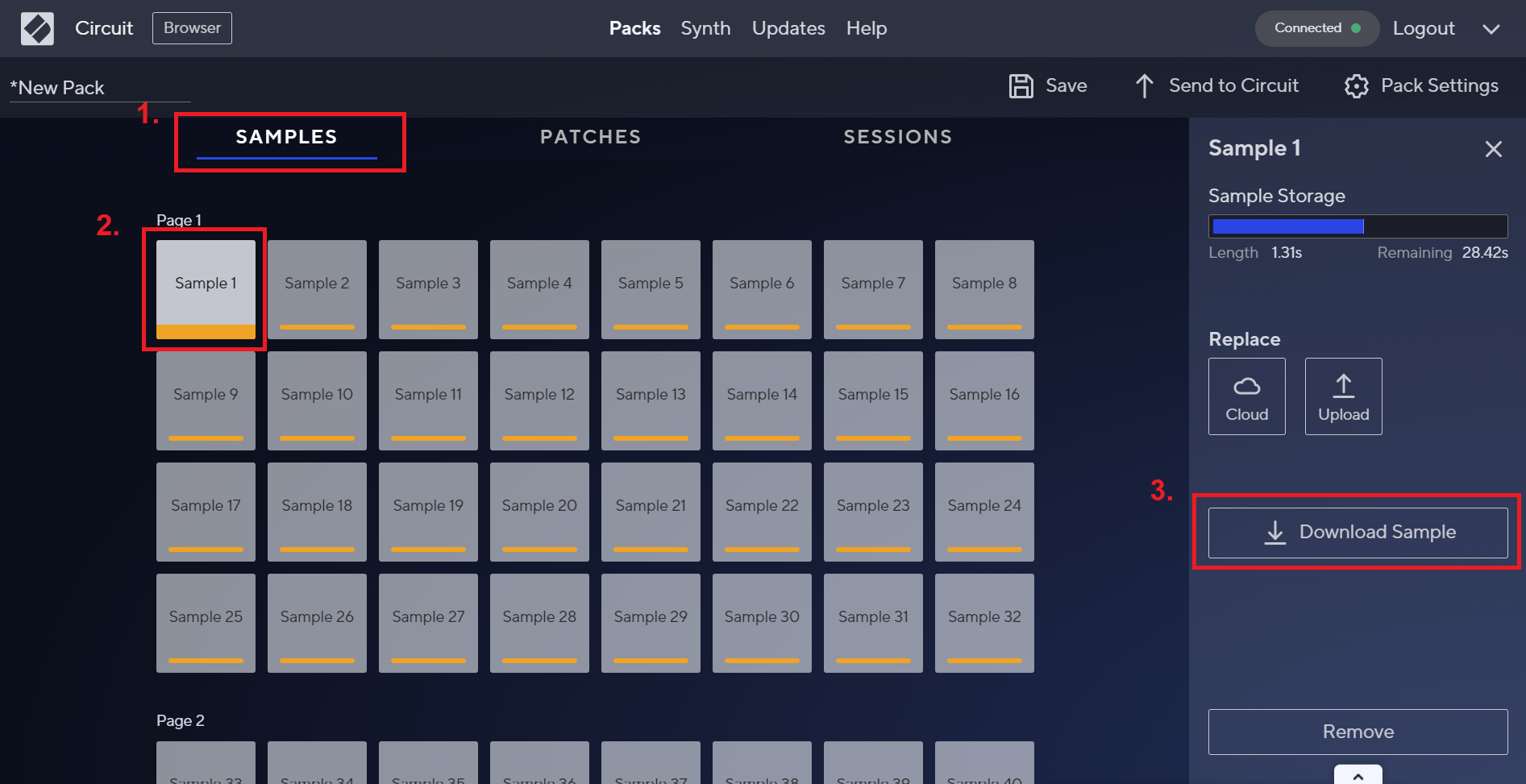

Backup individual Samples, Patches, and Sessions

1. Browse through the Samples / Patches / Sessions pages once the Pack is loaded
2. Select the items you want to back up
3. Click the Download button in the sidebar on the right

Individuals are downloaded in the following format:

Samples: .wav (48khz / Mono / 16bit)

Patches: .sysex

Sessions: .circuitsession

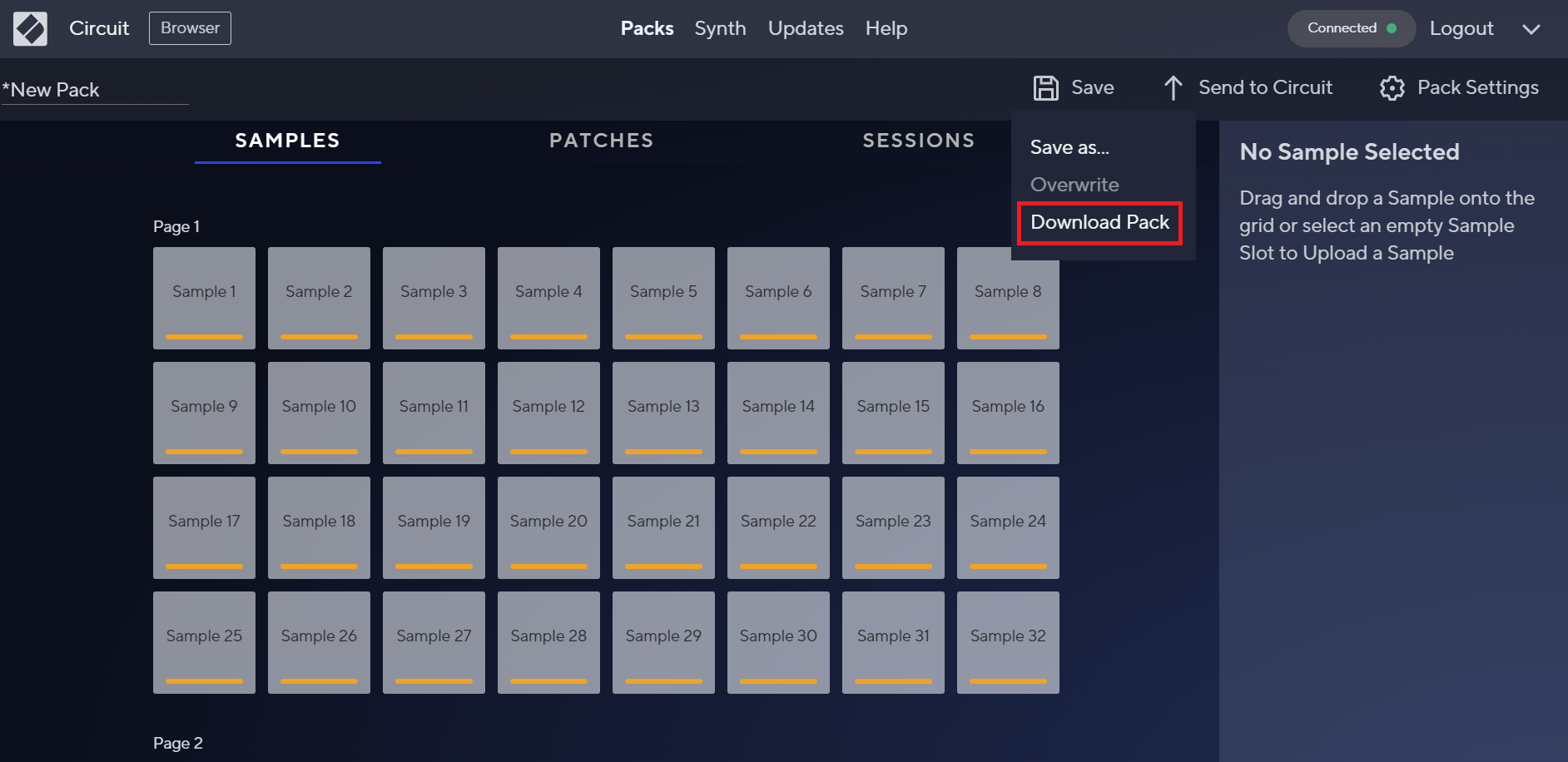

Backup Pack

You can also download the Pack and save it as a “.circuitpack” file on your computer. The Pack file included all the Samples, Patches and Sessions.

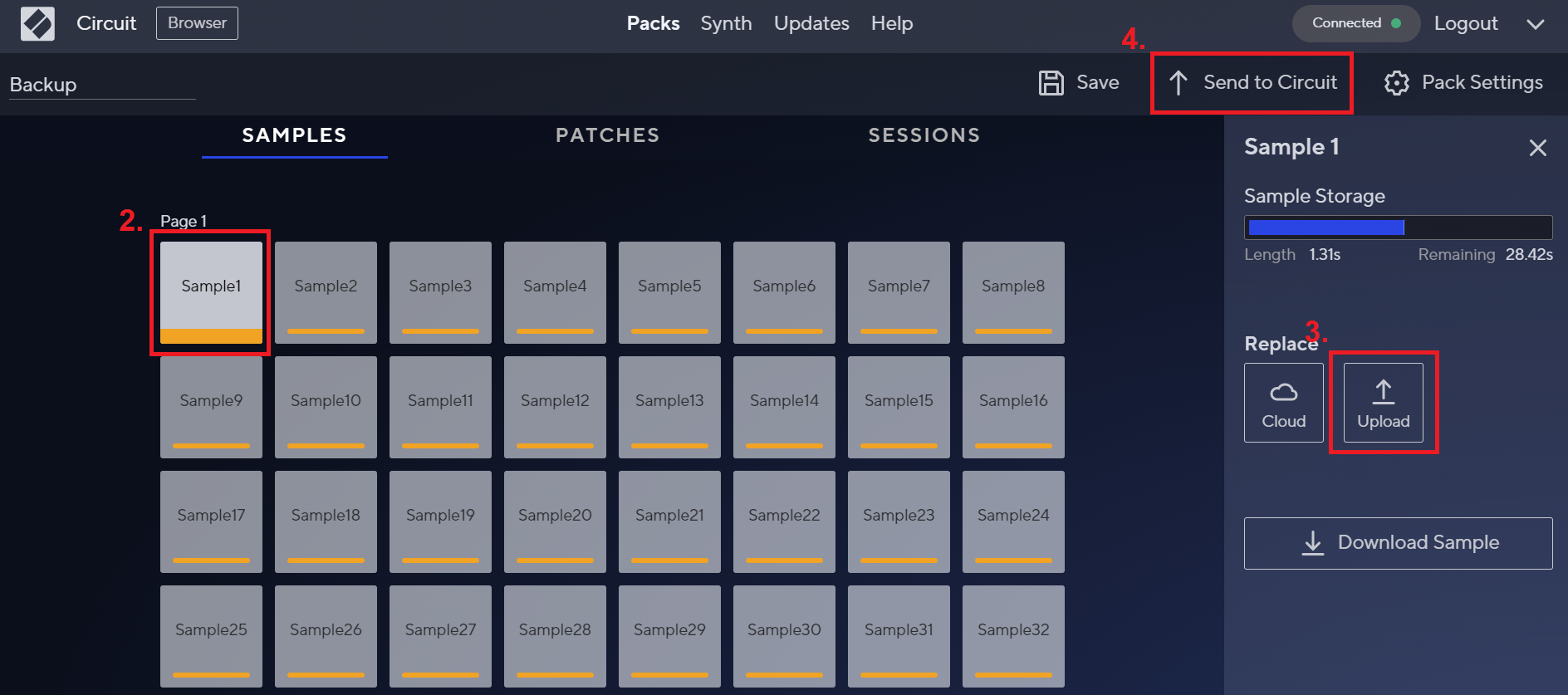

Restore Individuals

You can reload individual Samples, Patches, and Sessions files back to your Circuit.

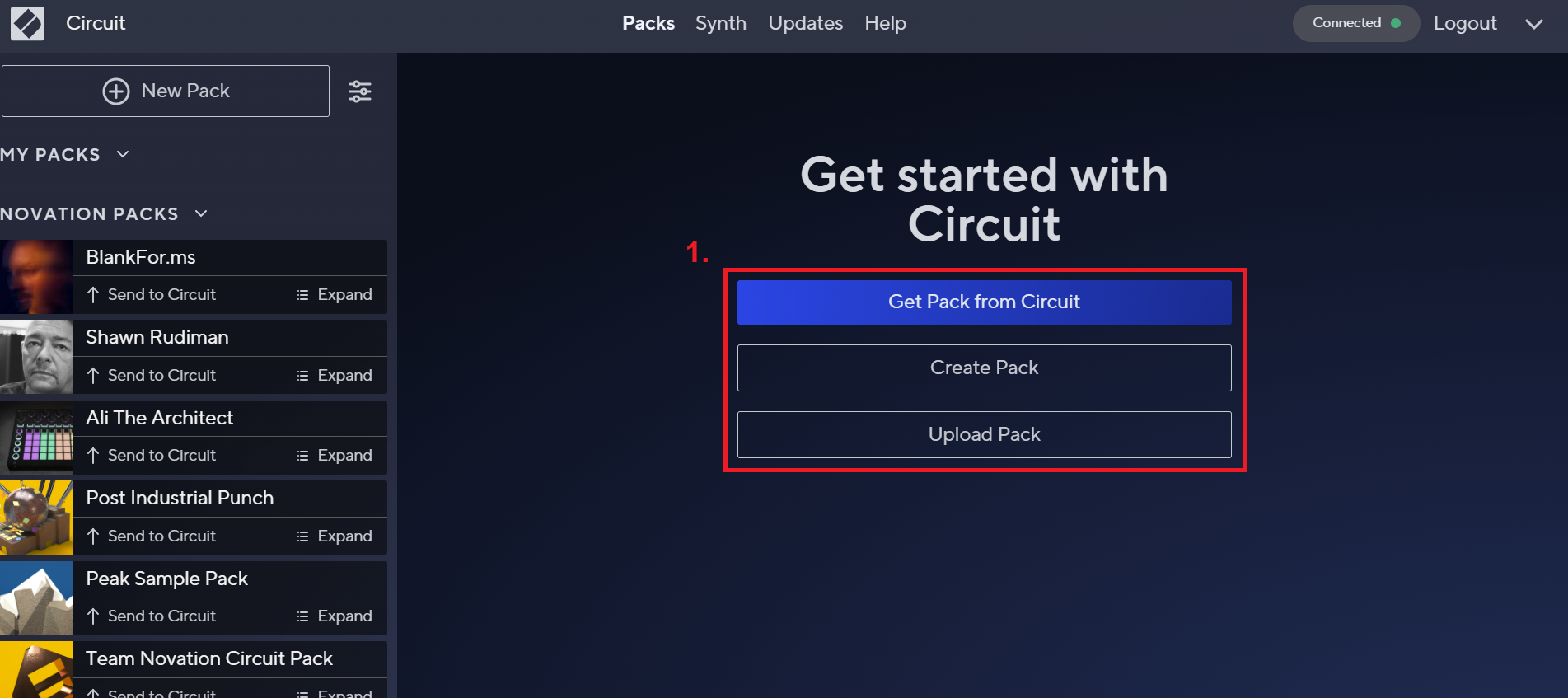

1. Pick one of the options on the Packs screen to load a Pack

2. Select the slot from the Samples / Patches / Sessions pages

3. Click the Upload button in the sidebar on the right

4. Once the individual is uploaded, you can click the “Send to Circuit” button on the top and save the Pack to your Circuit

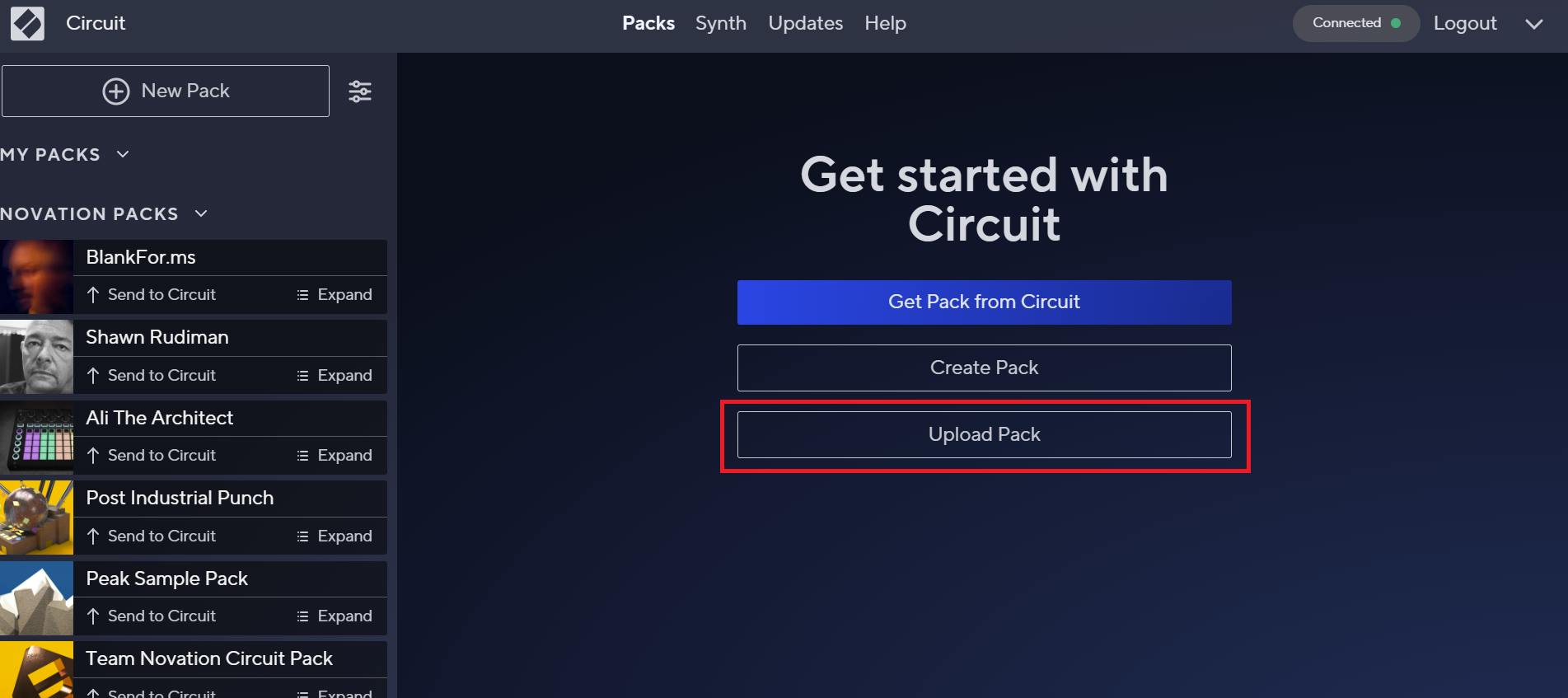

Restore Pack

You can upload the Packs from your computer by clicking the Upload Pack button. Once the Pack is loaded, click the “Send to Circuit” button on the top and send the Pack to your Circuit.
