Make sure to install the latest Novation USB Driver from the Launchkey MK4 Mini Downloads page:

downloads.novationmusic.com/novation

Once the driver has been installed successfully, with Ableton Live open and the Launchkey connected, go to:

Options > Settings > Link, Tempo & MIDI

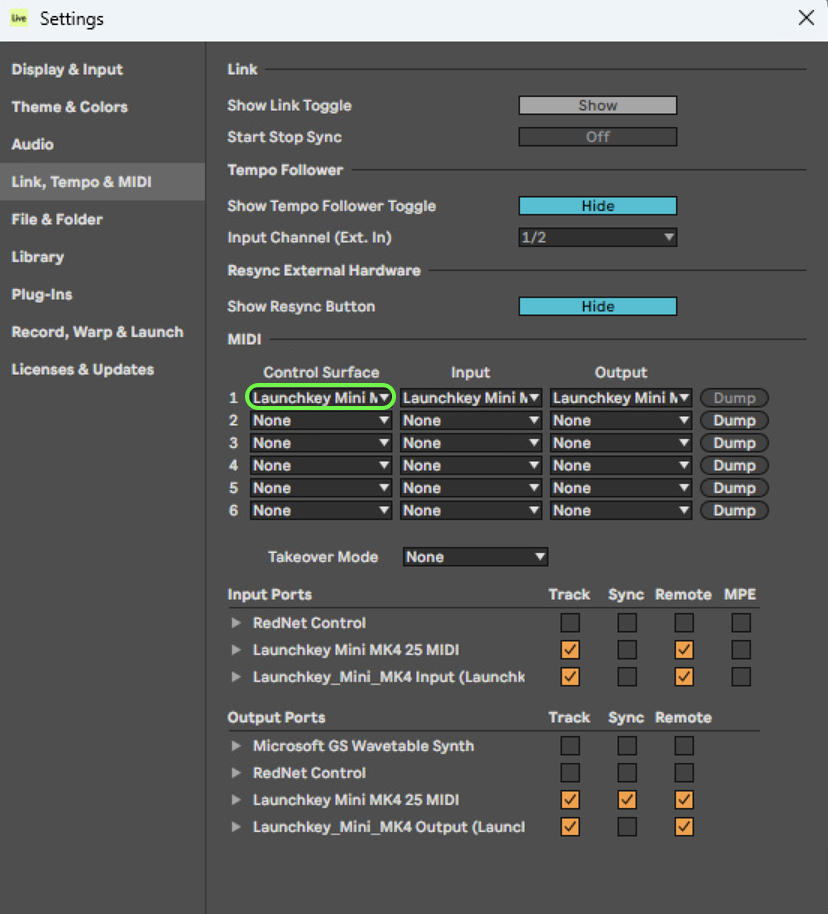

Under the Control Surface section, select 'Launchkey Mini MK4':

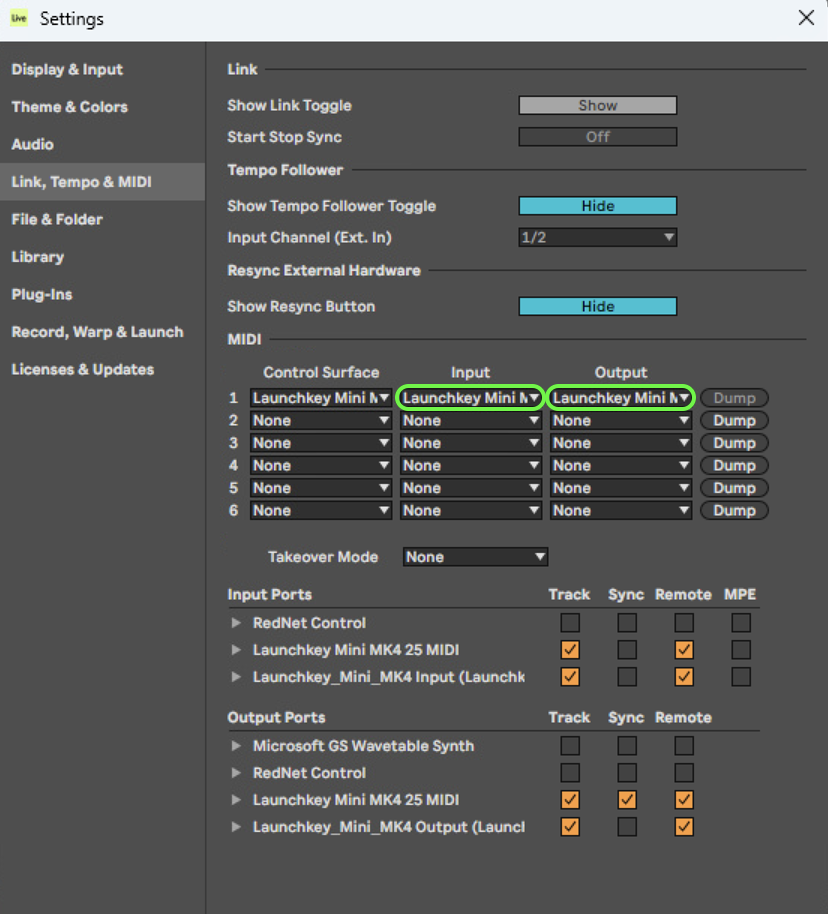

Under the Input and Output sections, select the DAW ports - these will appear either as '(Port 2)' both for Input and Output, or 'MIDIIN2 (LKMK4 MIDI)' for Input and 'MIDIOUT2 (LKMK4 MIDI)' for Output (below shown for a Launchkey Mini 25):

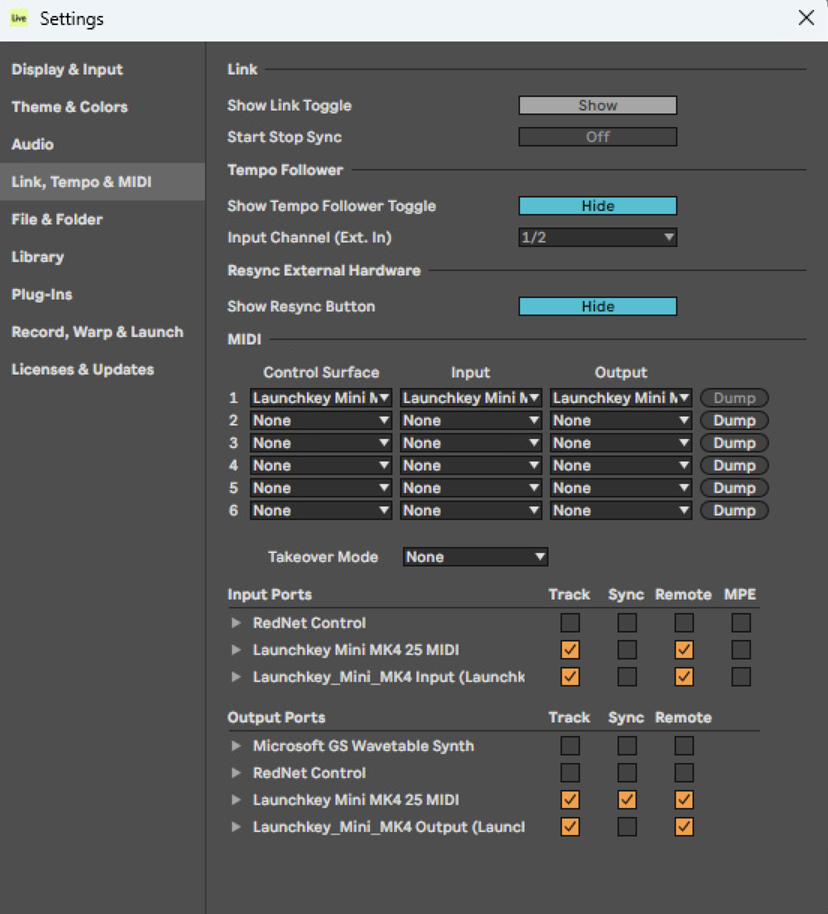

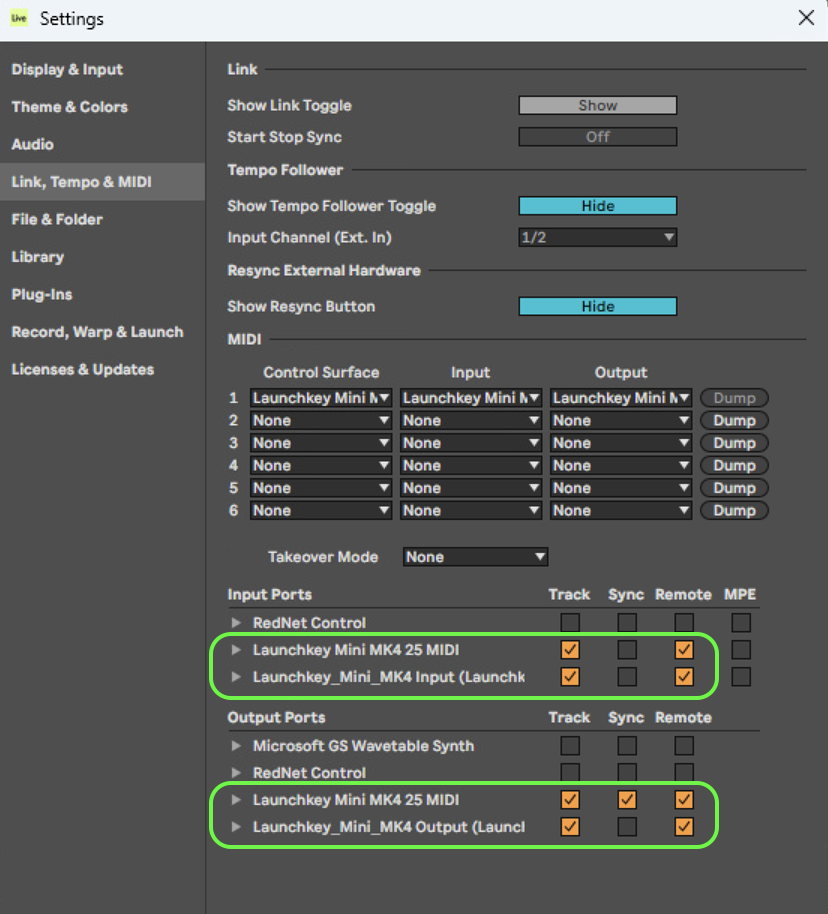

Under the Track and Remote sections, the settings should match the following:

Enabling MPE for the Input Ports section means that all MIDI channels are in use, so it's not possible to set a track to discretely respond to one MIDI channel. For this reason, it is disabled in the above settings, but you may wish to enable it if using Polyphonic Aftertouch data from the pads.

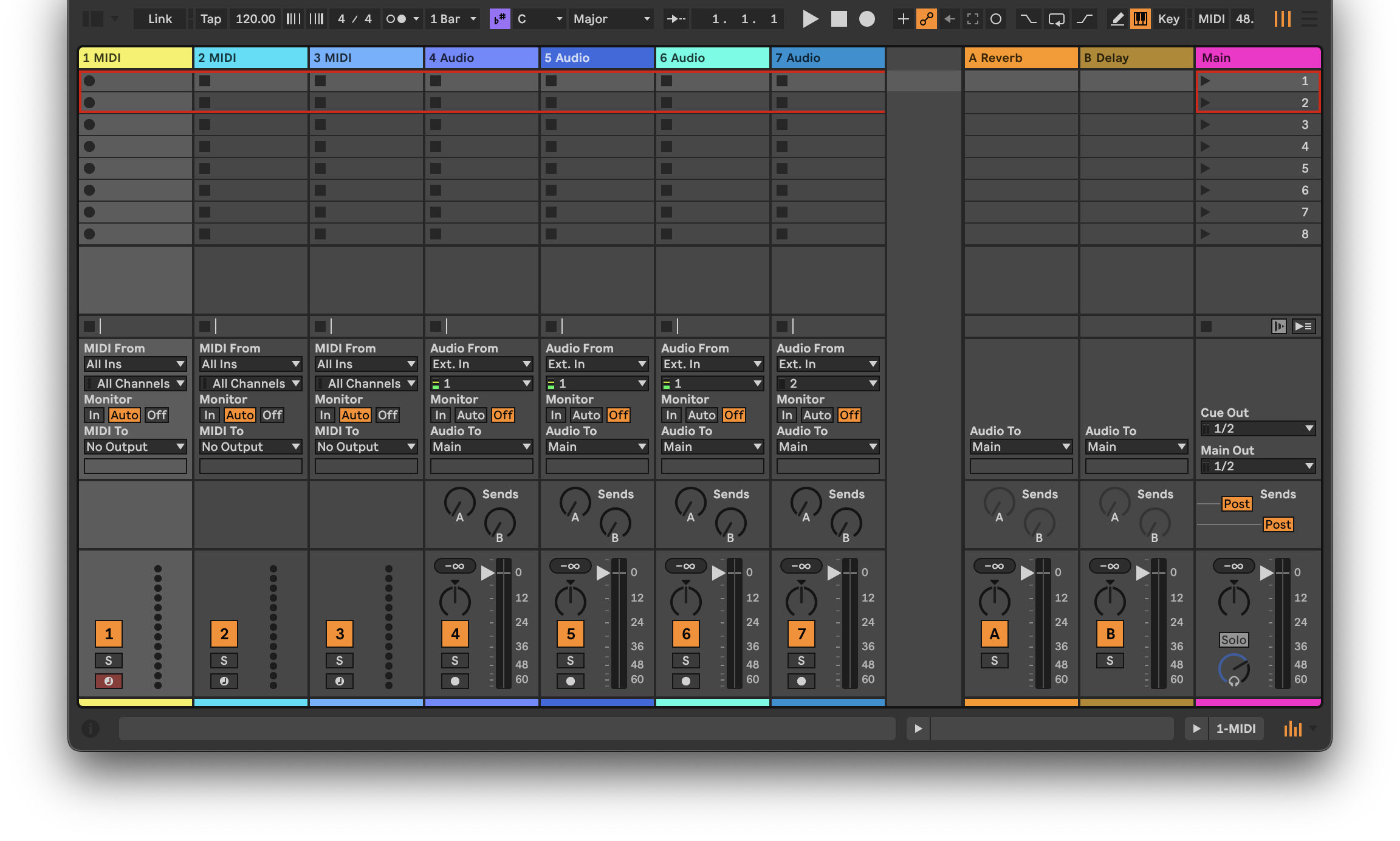

If set up correctly, the DAW, Plugin, Mixer, Sends, and Transport pads light up when holding down the Shift button. The Live Control Surface selection should also appear in the Session view (below shown in red):

Make sure to install the latest Novation USB Driver from the Launchkey MK4 Mini Downloads page:

downloads.novationmusic.com/novation

Once the driver has been installed successfully, with Ableton Live open and the Launchkey connected, go to:

Options > Preferences > Link Tempo MIDI

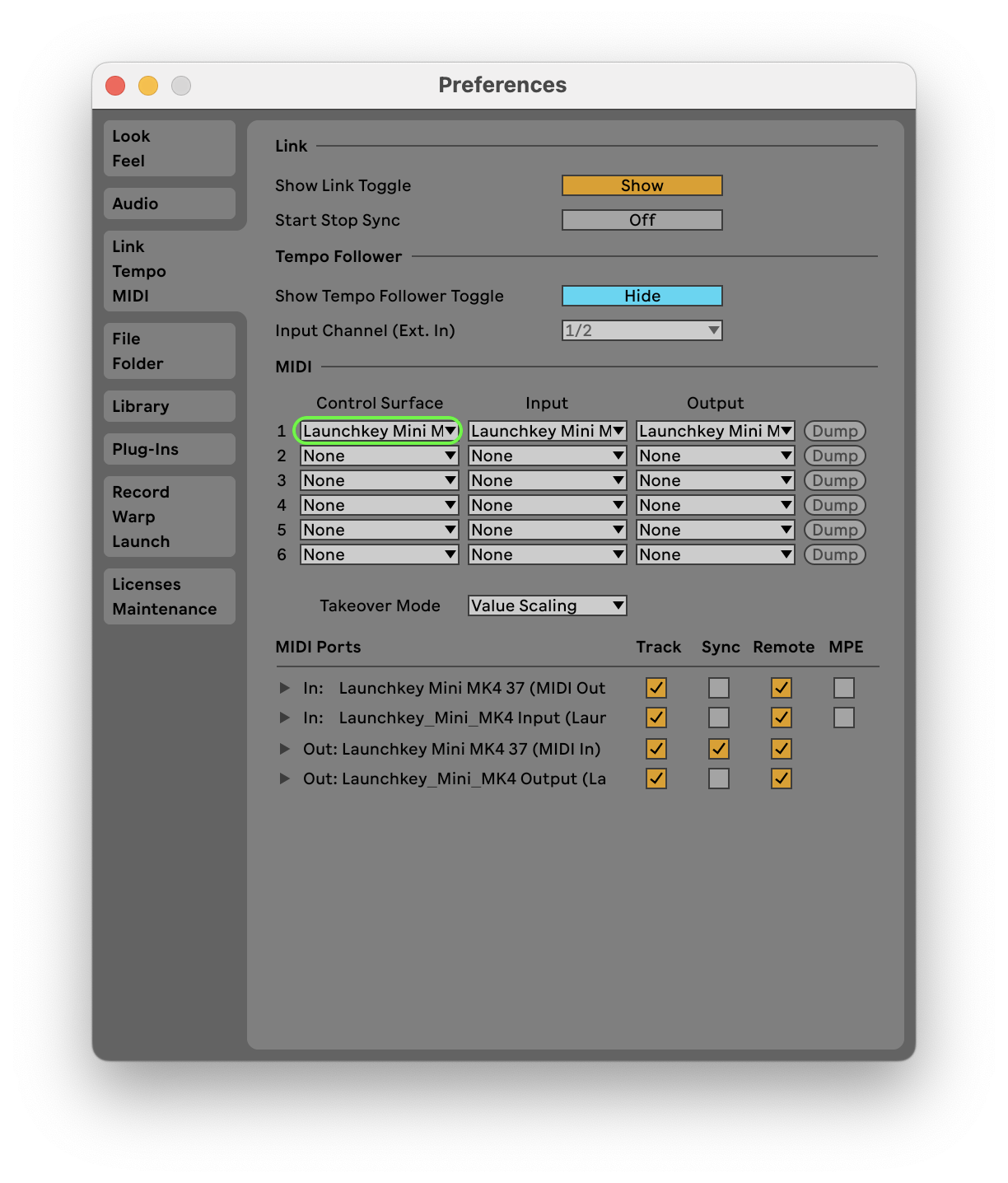

Under the Control Surface section, select 'Launchkey Mini MK4':

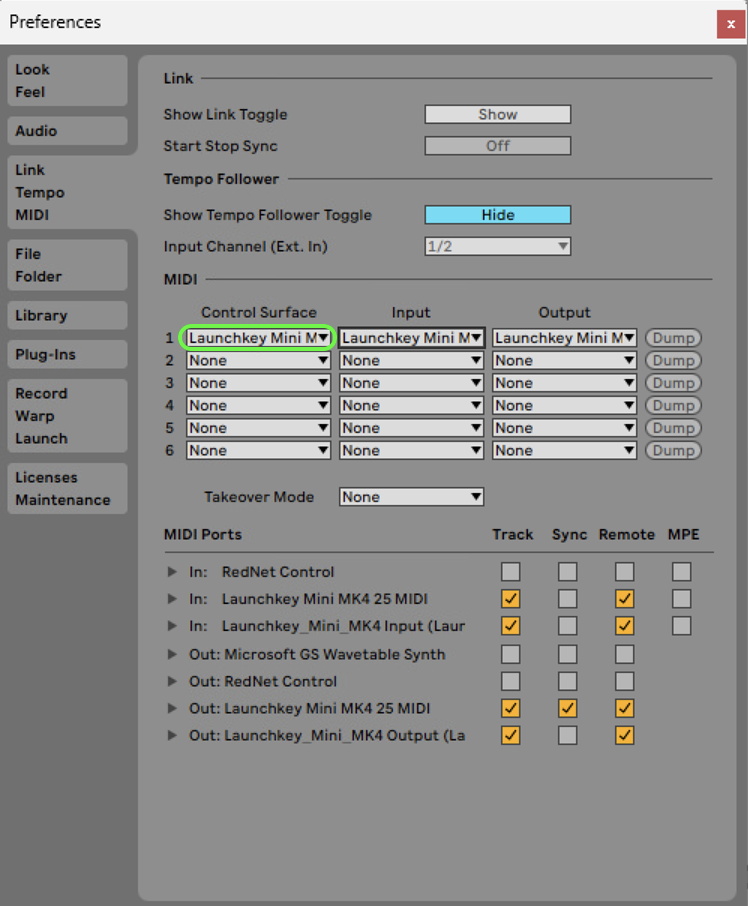

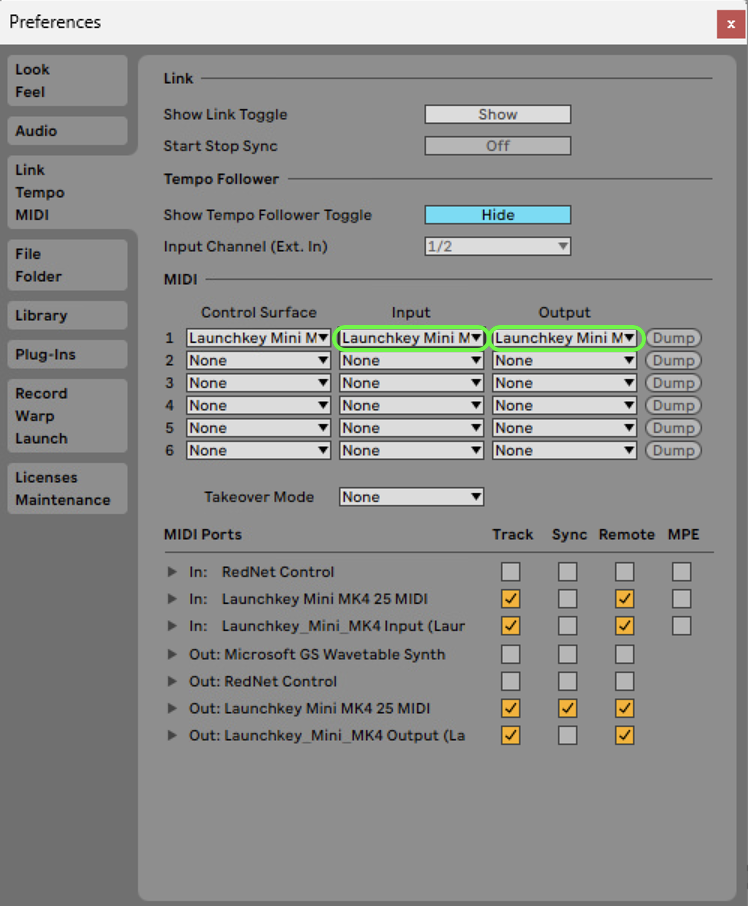

Under the Input and Output sections, select the DAW ports - these will appear either as '(Port 2)' both for Input and Output, or 'MIDIIN2 (LKMK4 MIDI)' for Input and 'MIDIOUT2 (LKMK4 MIDI)' for Output (below shown for a Launchkey Mini 25):

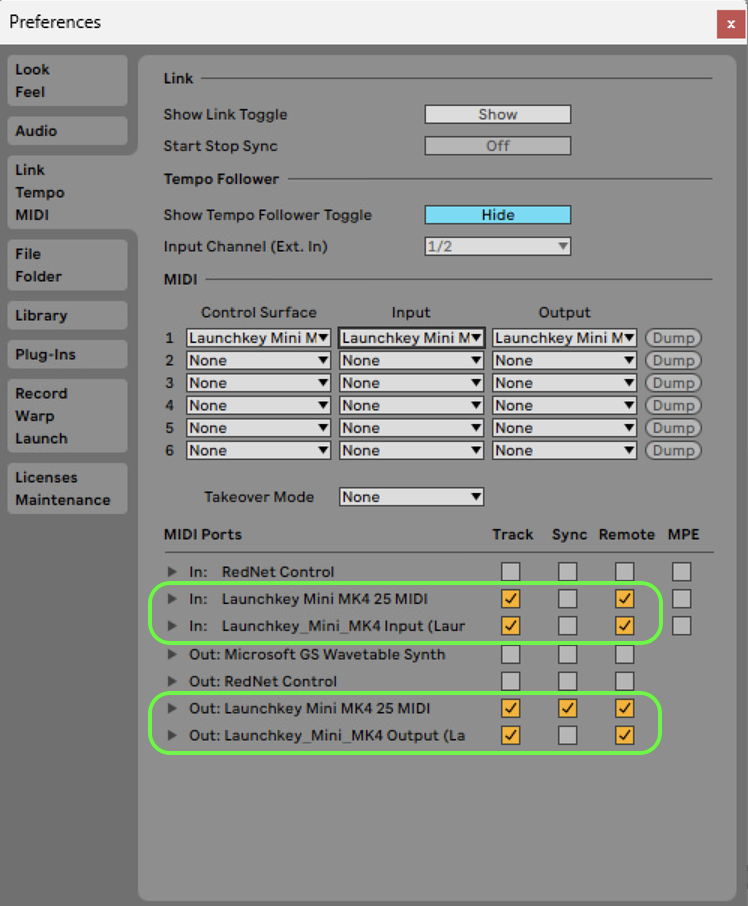

Under the Track and Remote sections, the settings should match the following:

Enabling MPE for the Input Ports section means that all MIDI channels are in use, so it's not possible to set a track to discretely respond to one MIDI channel. For this reason, it is disabled in the above settings, but you may wish to enable it if using Polyphonic Aftertouch data from the pads.

If set up correctly, the DAW, Plugin, Mixer, Sends, and Transport pads light up when holding down the Shift button. The Live Control Surface selection should also appear in the Session view (below shown in yellow):

Launchkey MK4 Mini will not function to its full potential in Live 10 or earlier, however, you can still use it as a generic MIDI controller, as per the steps below. Alternatively, you can install the included copy of Ableton Live 12 Lite for free for more advanced control: How to install and activate Ableton Live Lite

With Ableton Live open, go to the 'Link MIDI' tab in the Live Preferences:

Options > Preferences > Link MIDI

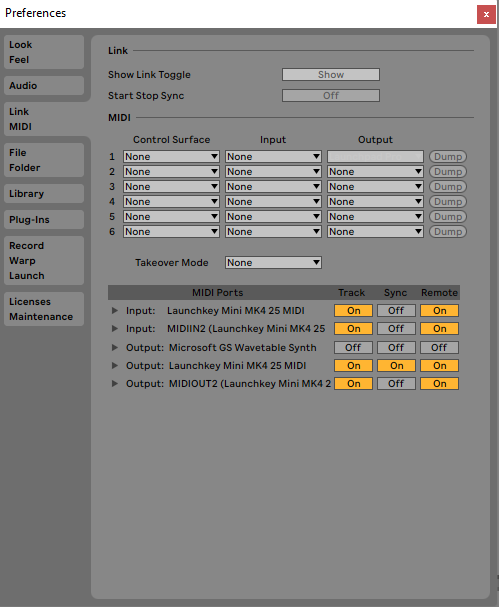

Then, match the MIDI settings below (here shown for a Launchkey Mini 25):

You can then use generic MIDI mappings in Live to map the controls of your Launchkey (e.g. encoders, faders, Transport buttons, etc) to the Live controls. See this Ableton Support article for reference: Making custom MIDI Mappings

Features that are not possible without the Ableton Live integration mainly include, but are not limited to; Clip Launching, Plugin control, and Capture MIDI.

With Ableton Live open and the Launchkey connected, go to:

Live > Settings > Link, Tempo & MIDI

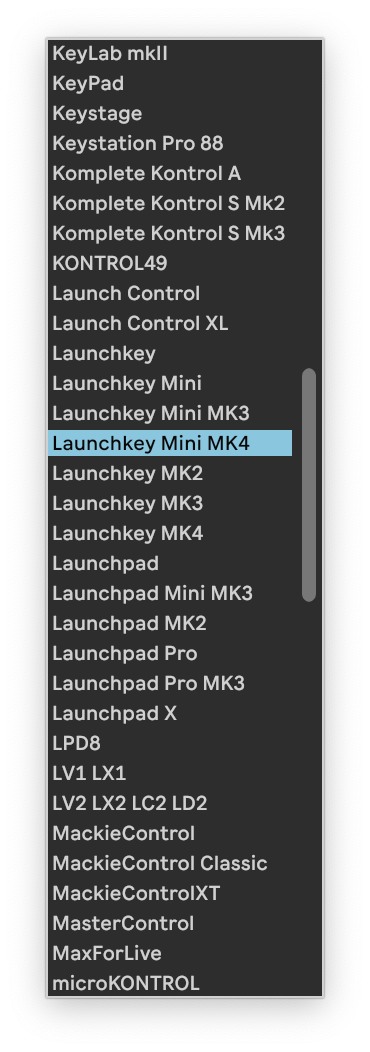

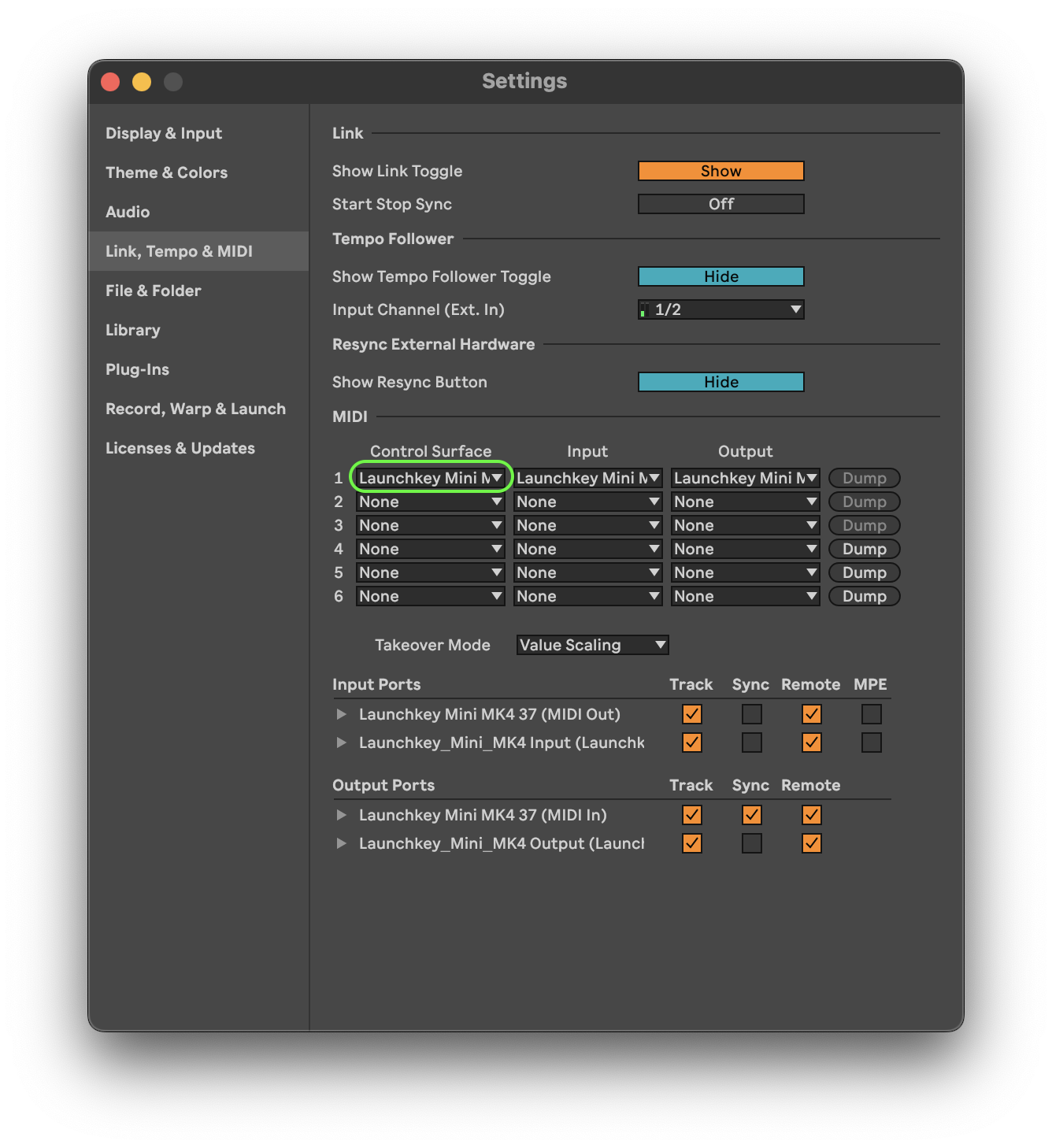

Under the Control Surface section, select 'Launchkey Mini MK4':

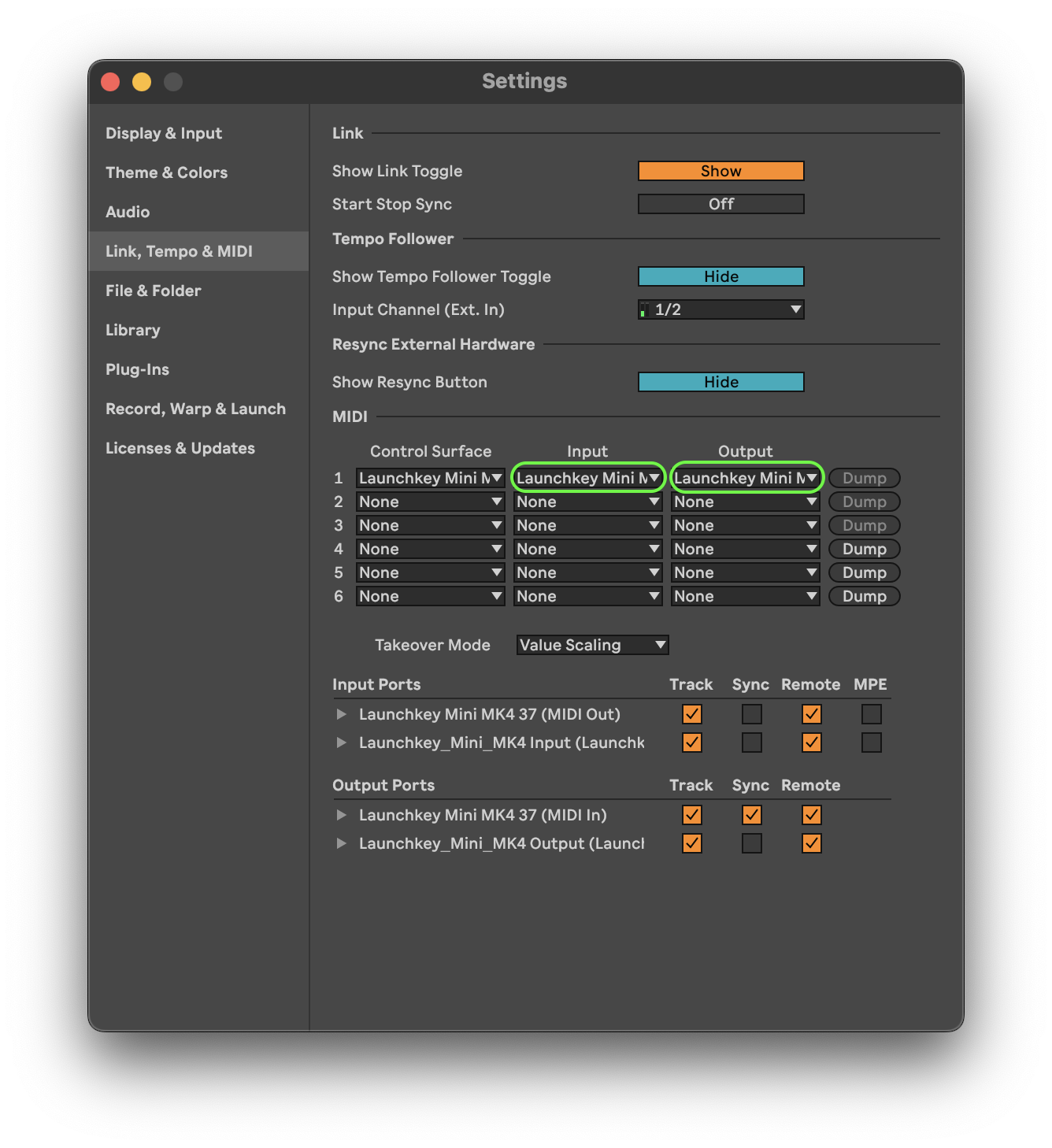

Under the Input and Output sections, select the DAW ports 'Launchkey Mini MK4 (DAW In)' and 'Launchkey Mini MK4 (DAW Out)' (below shown for a Launchkey Mini 37):

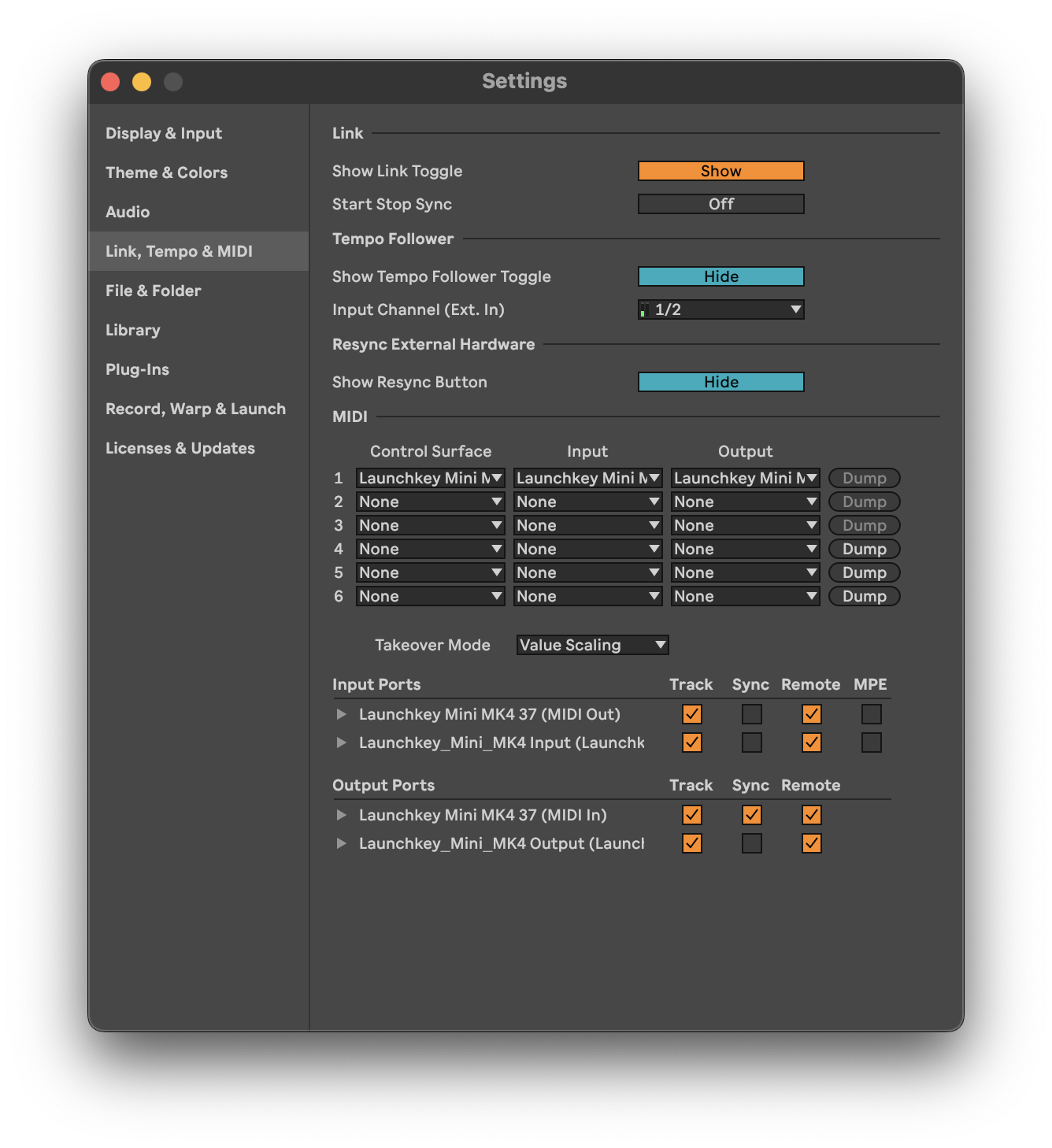

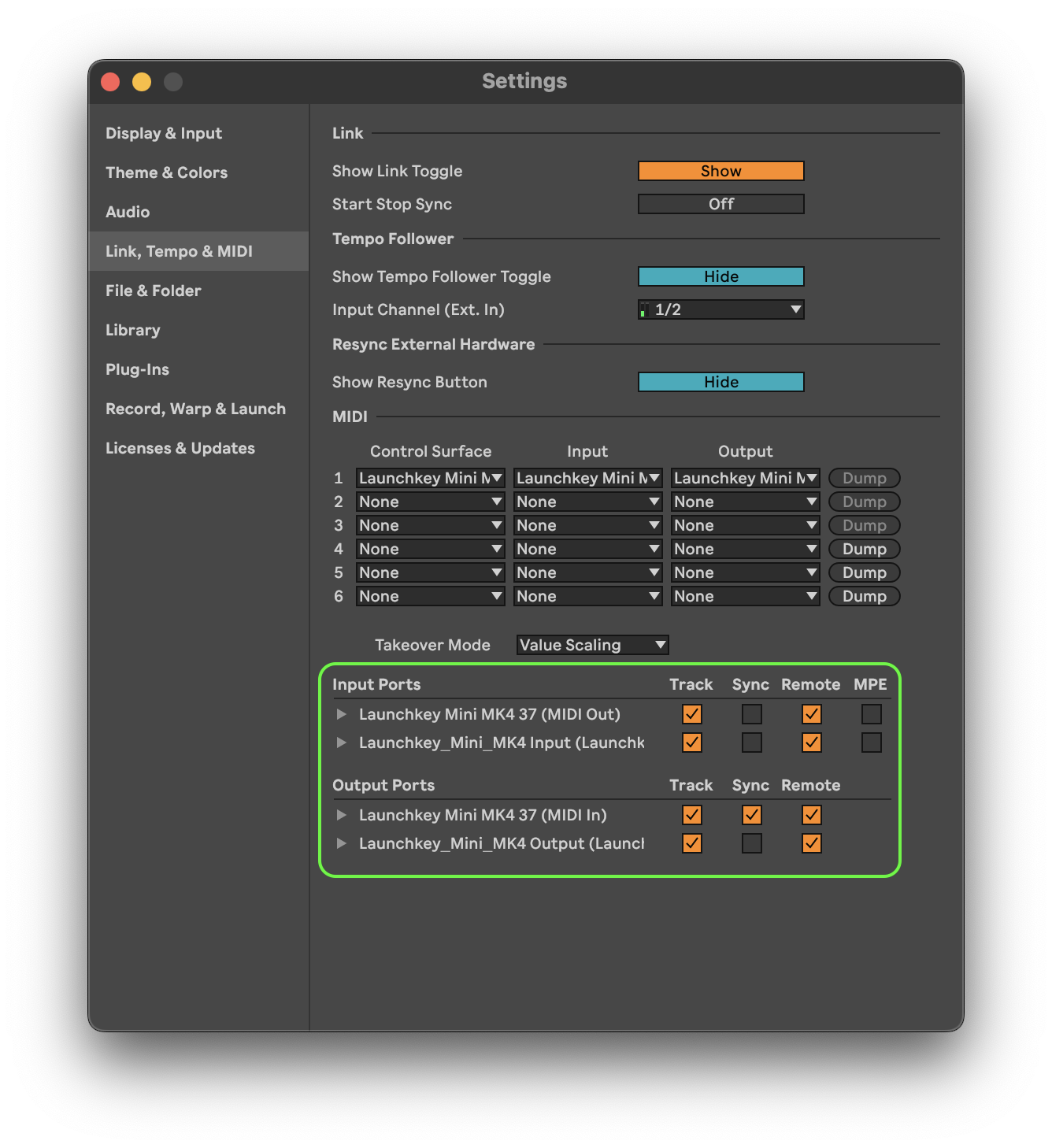

Under the Track and Remote sections, the settings should match the following:

Enabling MPE for the Input Ports section means that all MIDI channels are in use, so it's not possible to set a track to discretely respond to one MIDI channel. For this reason, it is disabled in the above settings, but you may wish to enable it if using Polyphonic Aftertouch data from the pads.

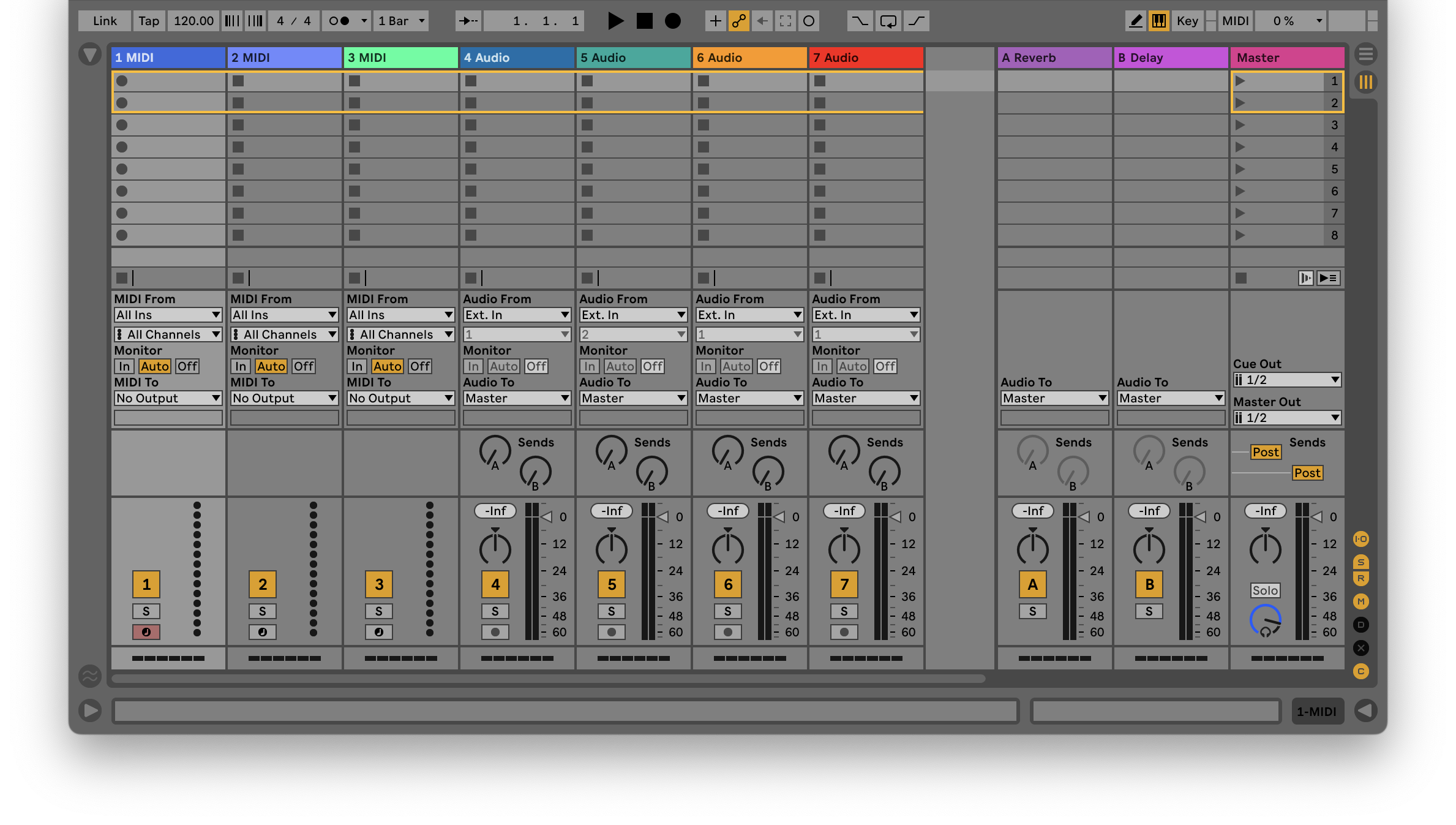

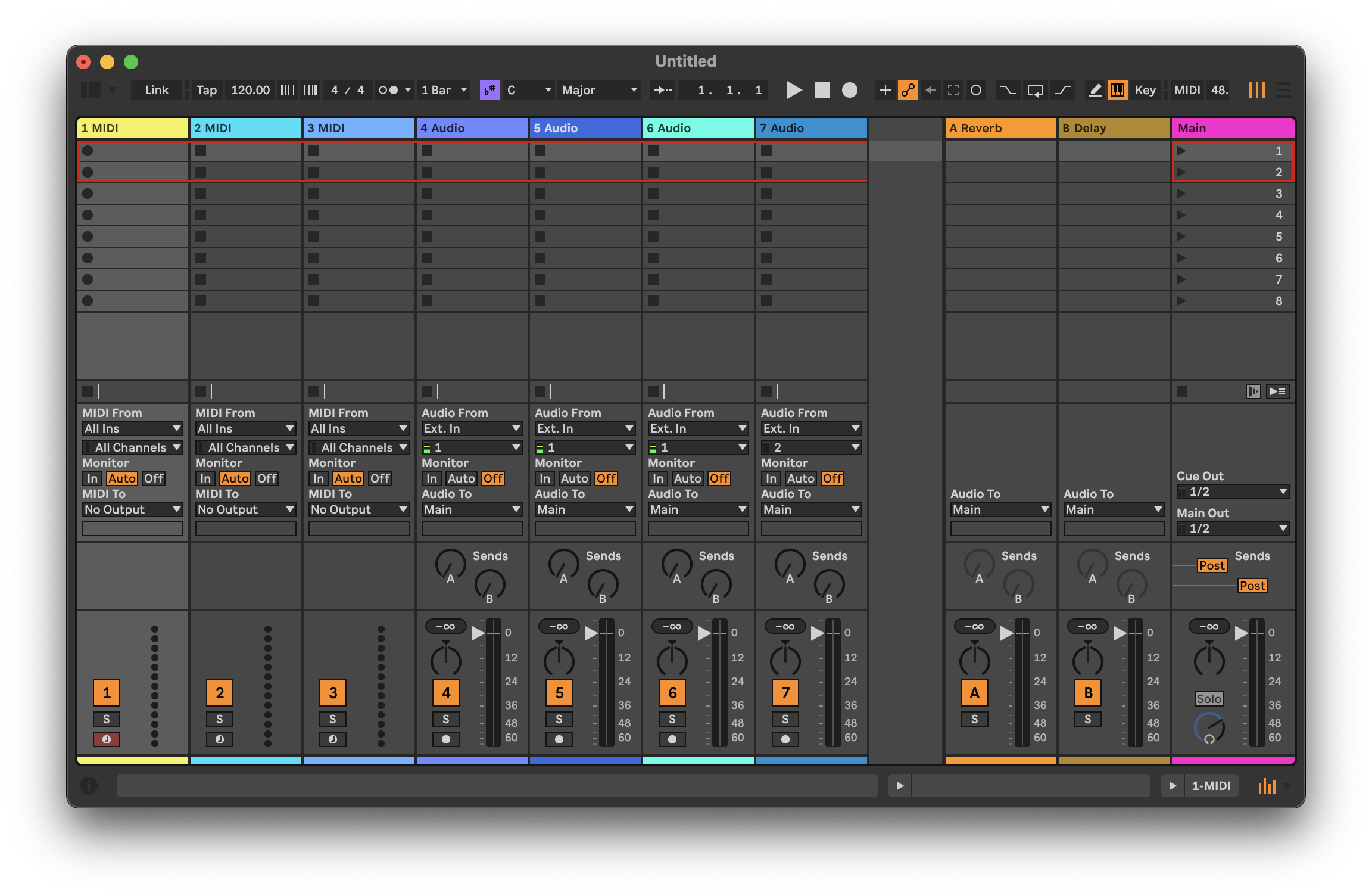

If set up correctly, the DAW, Plugin, Mixer, Sends, and Transport pads light up when holding down the Shift button. The Live Control Surface selection should also appear in the Session view (below shown in red):

With Ableton Live open and the Launchkey connected, go to:

Live > Settings (Preferences) > Link Tempo MIDI

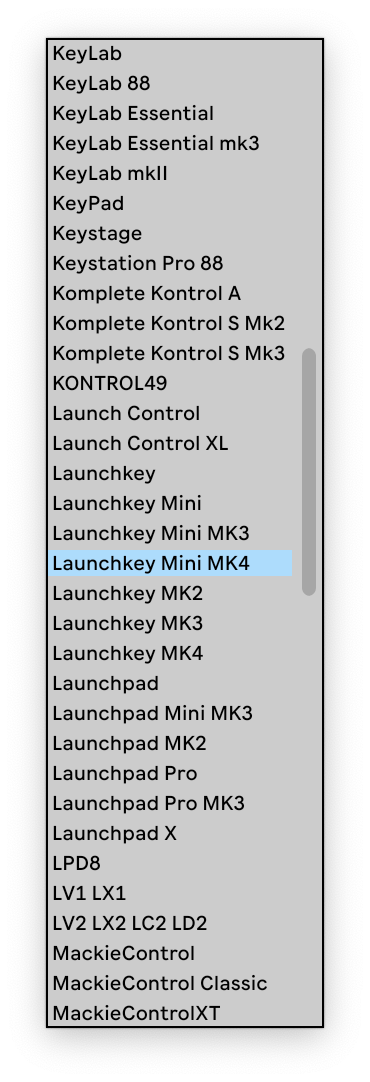

Under the Control Surface section, select 'Launchkey Mini MK4':

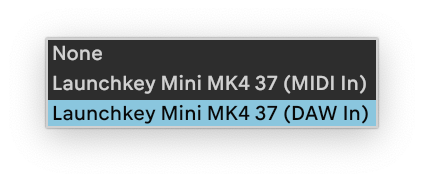

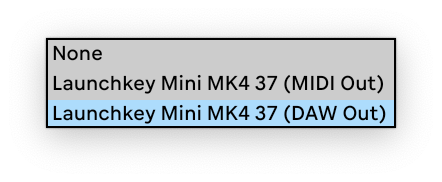

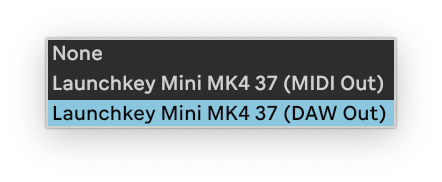

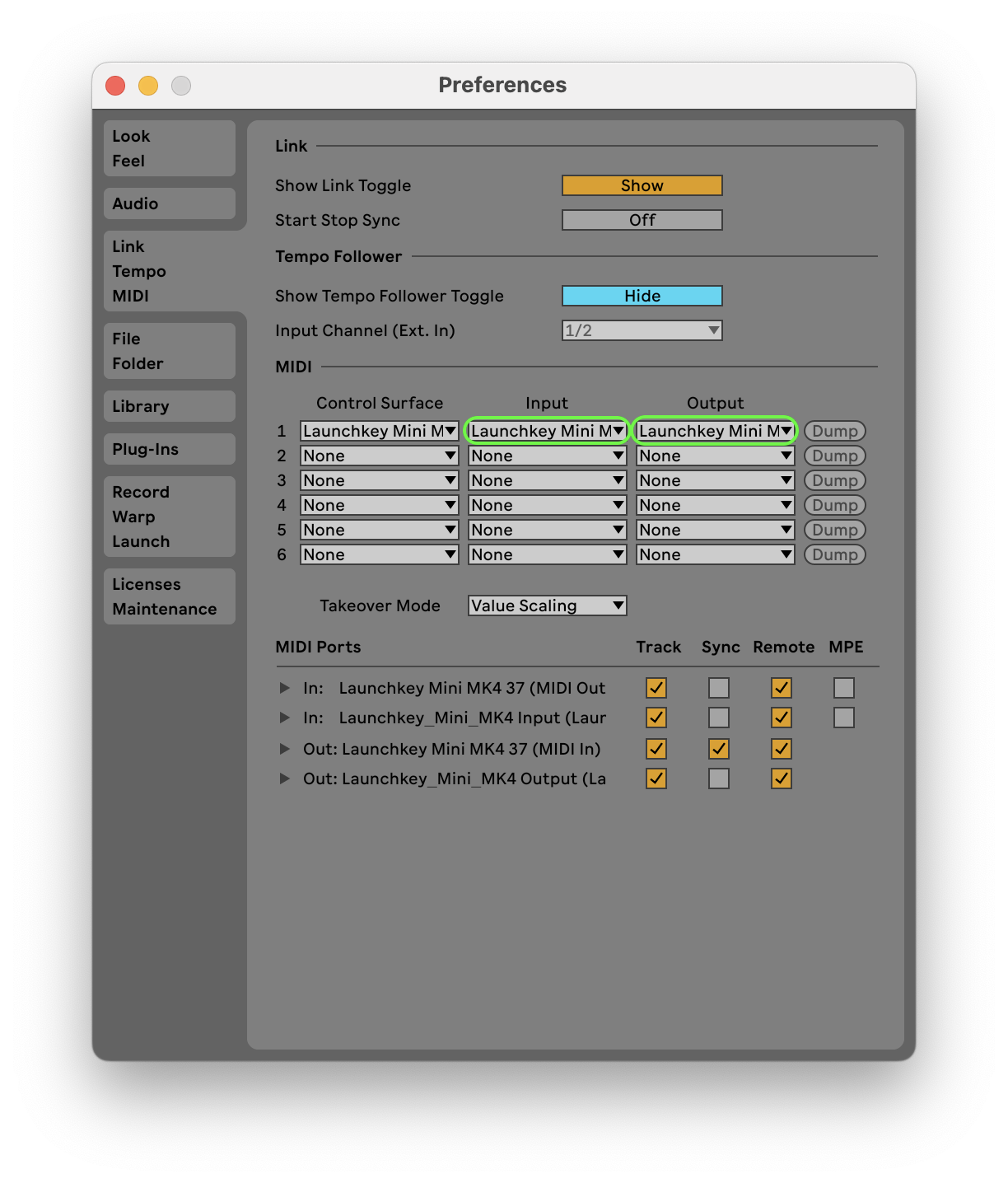

Under the Input and Output sections, select the DAW ports 'Launchkey MK4 (DAW In)' and 'Launchkey MK4 (DAW Out)' (below shown for a Launchkey Mini 37):

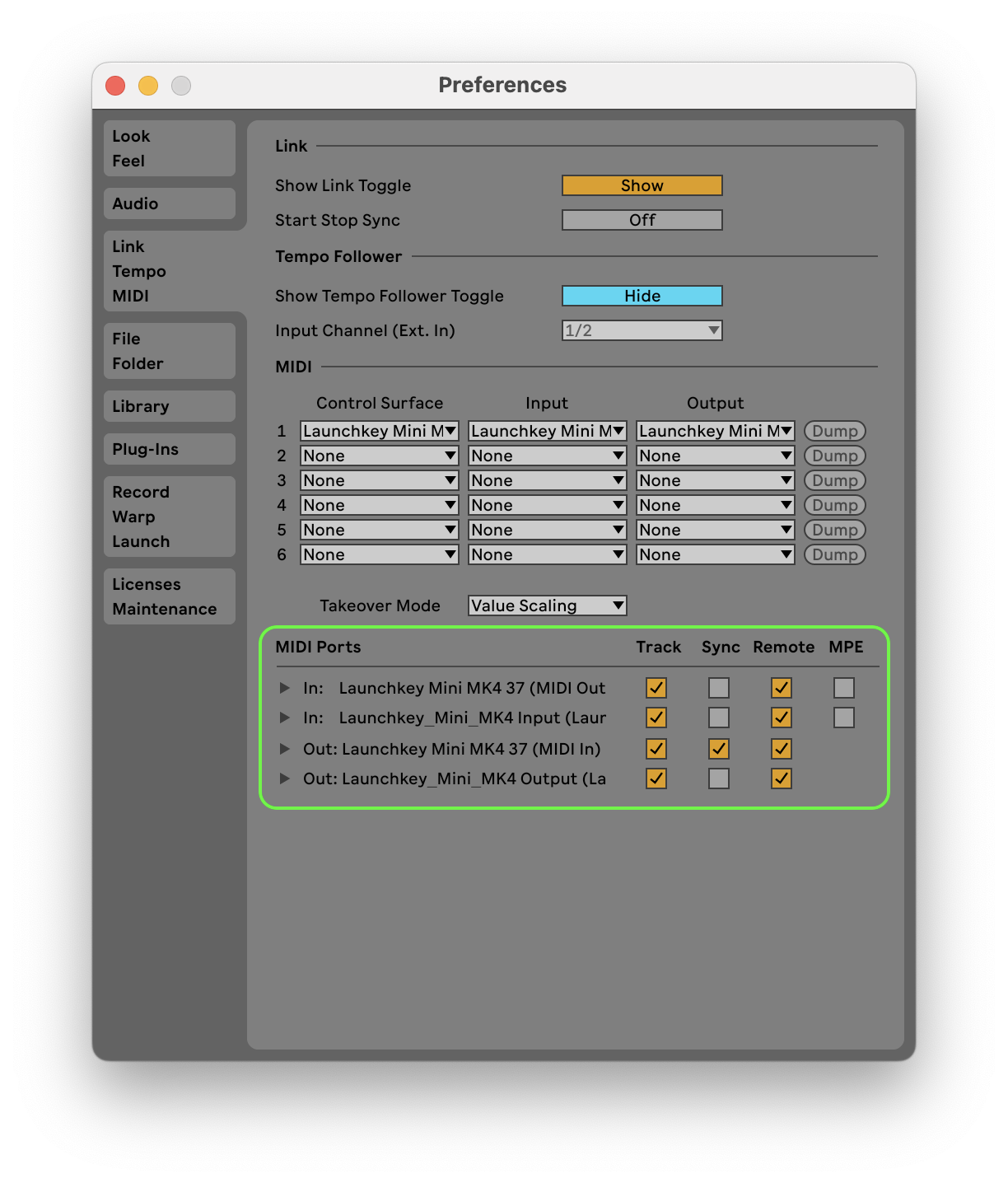

Under the Track and Remote sections, the settings should match the following:

Enabling MPE for the Input Ports section means that all MIDI channels are in use, so it's not possible to set a track to discretely respond to one MIDI channel. For this reason, it is disabled in the above settings, but you may wish to enable it if using Polyphonic Aftertouch data from the pads.

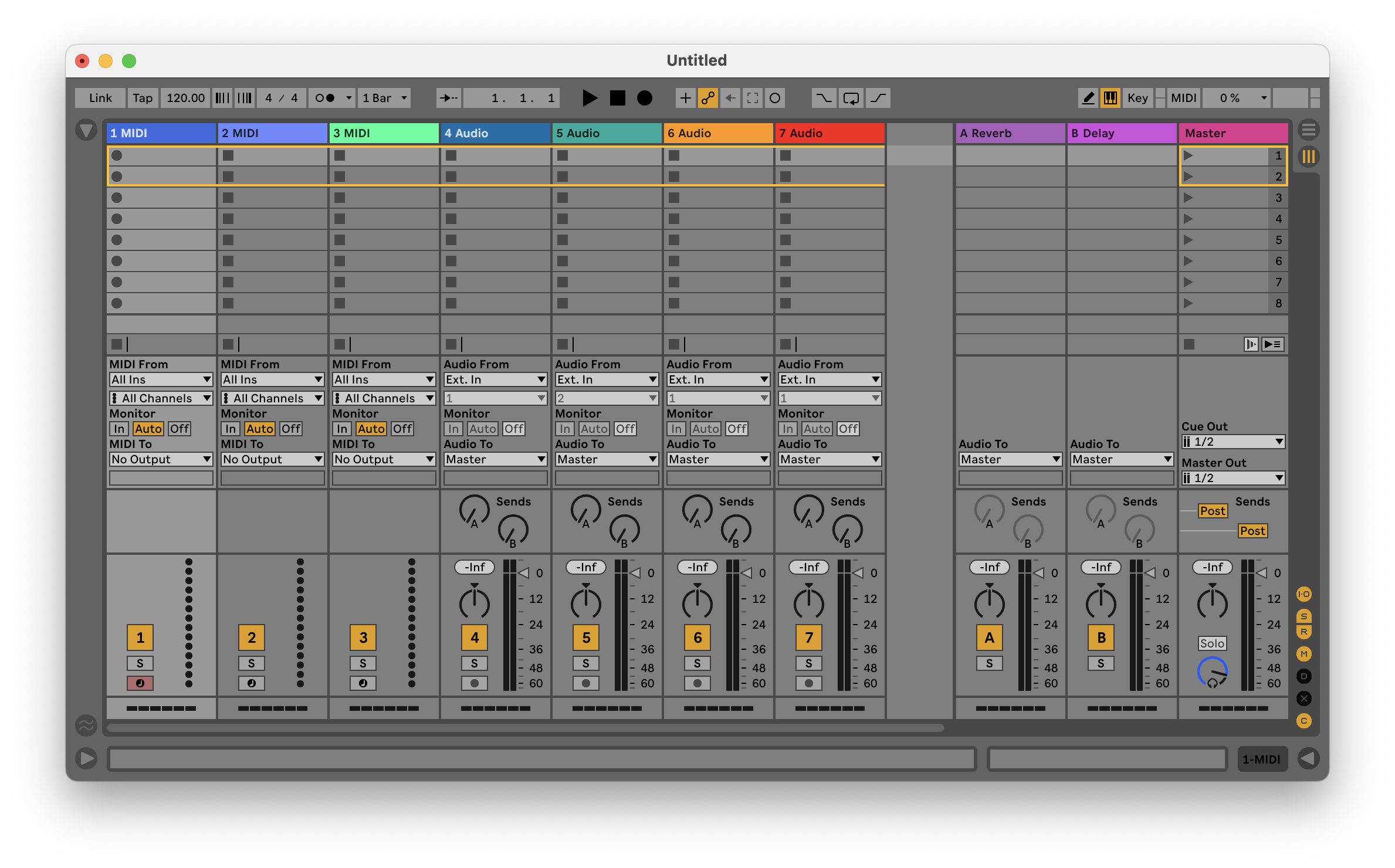

If set up correctly, the DAW, Plugin, Mixer, Sends, and Transport pads light up when holding down the Shift button. The Live Control Surface selection should also appear in the Session view (below shown in yellow):

Launchkey MK4 Mini will not function to its full potential in Live 10 or earlier, however, you can still use it as a generic MIDI controller as per the steps below. Alternatively, you can install the included copy of Ableton Live 12 Lite for free for more advanced control: How to install and activate Ableton Live Lite

With Ableton Live open, go to the 'Link MIDI' tab in the Live Preferences:

Live > Preferences > Link MIDI

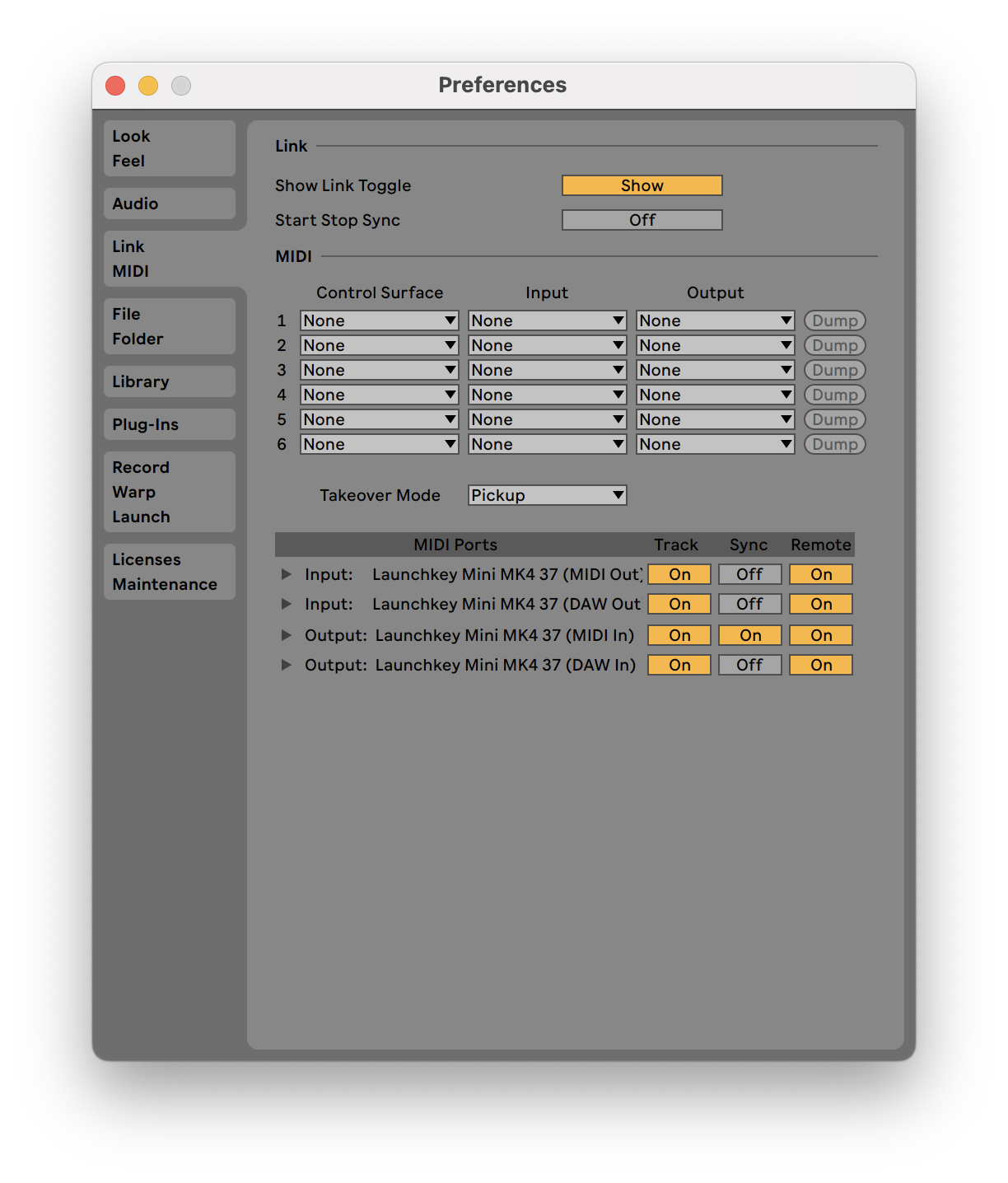

Then, match the MIDI settings below (here shown for a Launchkey Mini 37):

You can then use generic MIDI mappings in Live to map the controls of your Launchkey (e.g. encoders, faders, Transport buttons, etc) to the Live controls. See this Ableton Support article for reference: Making custom MIDI Mappings

Features that are not possible without the Ableton Live integration mainly include, but are not limited to; Clip Launching, Plugin control, and Capture MIDI.
