How to set up Launch Control XL MK1 and MK2 with Ableton Live

  • Aktualisiert

Applies to Launch Control XL MK1 and Launch Control XL MK2

Live 12

Windows

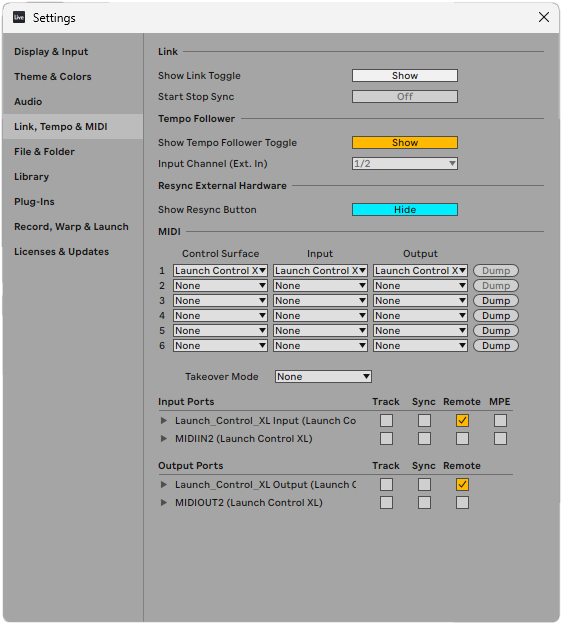

To set the Launch Control XL up with Ableton Live 12 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Options > Preferences.
  2. Go to the Link / Tempo / MIDI tab.


  1. Set the Control Surface to Launch Control XL.


  1. Set the Input and Output to Launch Control XL, not MIDIIN2 or MIDIOUT2.

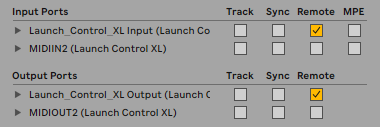

  1. Under Input Ports and Output Ports, tick the Remote boxes for Launch_Control_XL Input and Launch_Control_XL Output. Untick Track, Sync, and MPE.
  2. Leave all boxes unticked for MIDIIN2 (Launch Control XL) and MIDIOUT2 (Launch Control XL).


For more information on Live's MIDI preferences and the functions of Track, Sync, Remote and MPE, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.

Mac

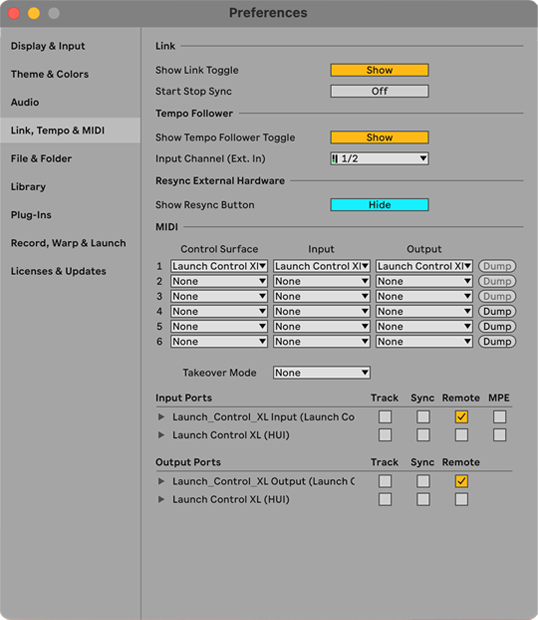

To set the Launch Control XL up with Ableton Live 12 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Live > Settings….
  2. Go to the Link / Tempo / MIDI tab.


  1. Set the Control Surface to Launch Control XL.

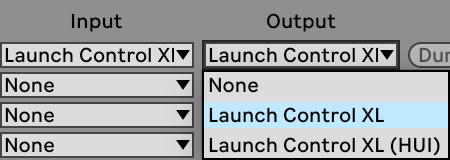

  1. Set the Input and Output to Launch Control XL, not Launch Control XL (HUI).

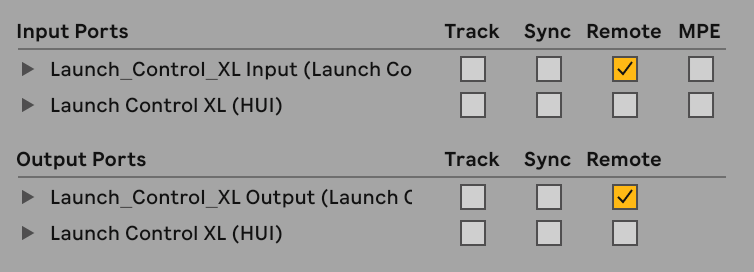

  1. Under Input Ports and Output Ports, tick the Remote boxes for Launch_Control_XL Input and Launch_Control_XL Output. Untick Track, Sync, and MPE.
  2. Leave all boxes unticked for Launch Control XL (HUI) and Launch Control XL (HUI).


For more information on Live's MIDI preferences and the functions of Track, Sync, Remote and MPE, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.

Live 11
Windows

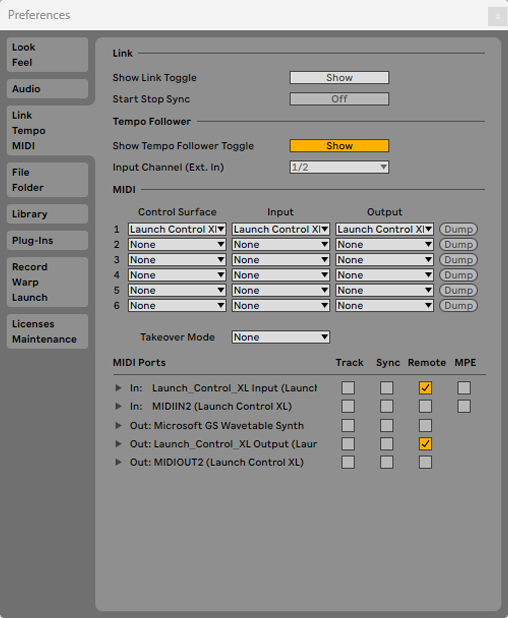

To set the Launch Control XL up with Ableton Live 11 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Options > Preferences.
  2. Go to the Link / Tempo / MIDI tab.


  1. Set the Control Surface to Launch Control XL.


  1. Set the Input and Output to Launch Control XL, not MIDIIN2 or MIDIOUT2.

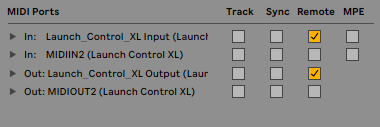

  1. Under MIDI Ports, tick the Remote boxes for In: Launch_Control_XL Input and Out: Launch_Control_XL Output. Untick Track, Sync, and MPE.
  2. Leave all boxes unticked for In: MIDIIN2 (Launch Control XL) and Out: MIDIOUT2 (Launch Control XL).


For more information on Live's MIDI preferences and the functions of Track, Sync, Remote and MPE, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.

Mac

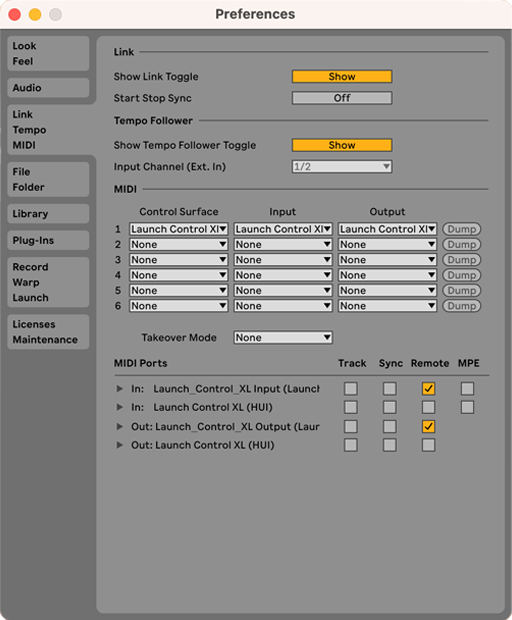

To set the Launch Control XL up with Ableton Live 11 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Live > Settings….
  2. Go to the Link / Tempo / MIDI tab.


  1. Set the Control Surface to Launch Control XL.

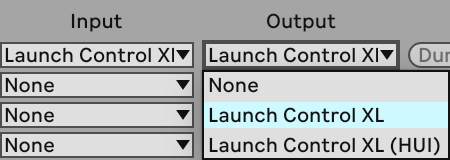

  1. Set the Input and Output to Launch Control XL, not Launch Control XL (HUI).

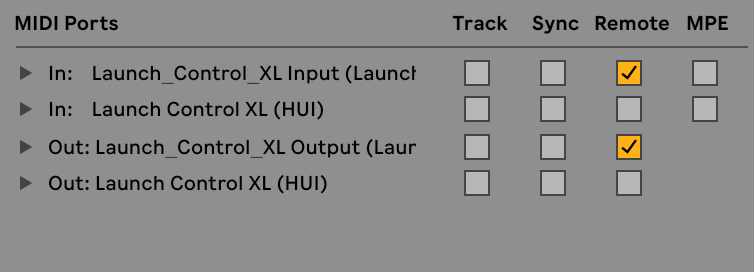

  1. Under MIDI Ports, tick the Remote boxes for In: Launch_Control_XL Input and Out: Launch_Control_XL Output. Untick Track, Sync, and MPE.
  2. Leave all boxes unticked for In: Launch Control XL (HUI) and Out: Launch Control XL (HUI).


For more information on Live's MIDI preferences and the functions of Track, Sync, Remote and MPE, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.

Live 10
Windows

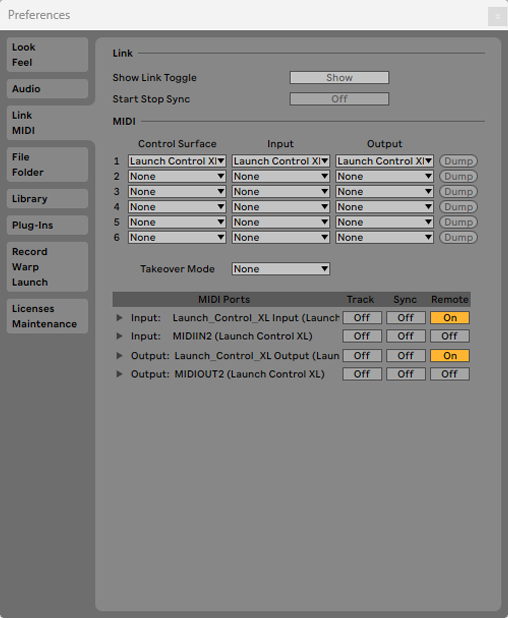

To set the Launch Control XL up with Ableton Live 10 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Options > Preferences.
  2. Go to the Link / MIDI tab.


  1. Set the Control Surface to Launch Control XL.


  1. Set the Input and Output to Launch Control XL, not MIDIIN2 or MIDIOUT2.

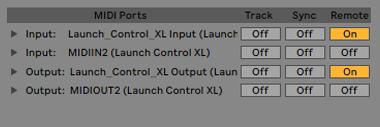

  1. Under MIDI Ports, turn the Remote boxes On for Input: Launch_Control_XL Input and Output: Launch_Control_XL Output. Turn the Track and Sync boxes Off.
  2. Leave all boxes Off for Input: MIDIIN2 (Launch Control XL) and Output: MIDIOUT2 (Launch Control XL).


For more information on Live's MIDI preferences and the functions of Track, Sync and Remote, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.

Mac

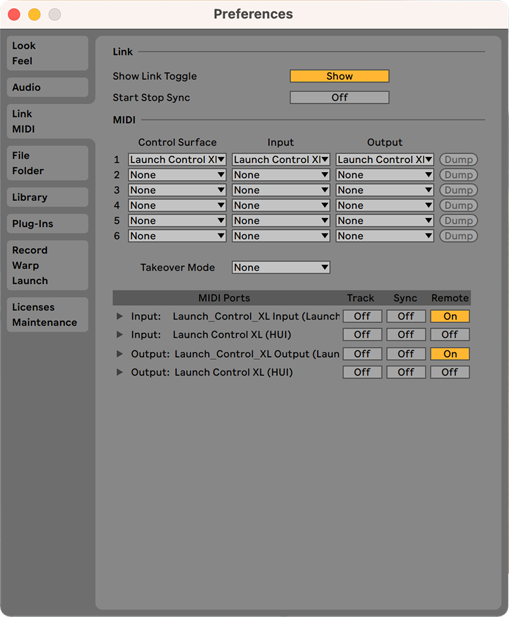

To set the Launch Control XL up with Ableton Live 10 please connect your Launch Control XL to your computer via USB, open Ableton and then follow the setup steps below.

  1. Open Live > Settings….
  2. Go to the Link / MIDI tab.


  1. Set the Control Surface to Launch Control XL.

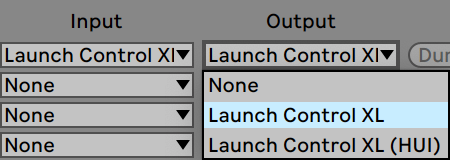

  1. Set the Input and Output to Launch Control XL, not Launch Control XL (HUI).

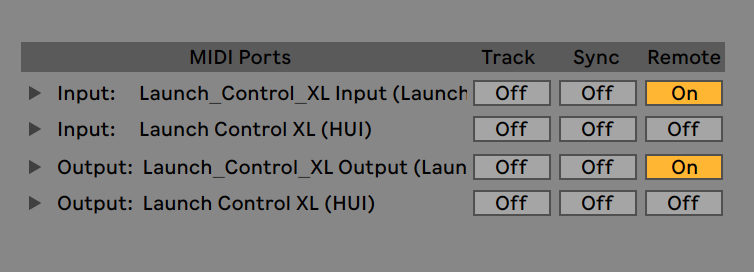

  1. Under MIDI Ports, turn the Remote boxes On for Input: Launch_Control_XL Input and Output: Launch_Control_XL Output. Turn the Track and Sync boxes Off.
  2. Leave all boxes Off for Input: Launch Control XL (HUI) and Output: Launch Control XL (HUI).


For more information on Live's MIDI preferences and the functions of Track, Sync and Remote, please see Ableton's knowledge base: Live's MIDI Preferences – Ableton.
