How to setup Cubase with the Impulse HUI firmware update – Novation

Applies to Impulse

For further information on the functionality of the HUI update for the Impulse, please see here.

For instructions on updating the firmware please see our help centre guides for Mac and Windows.

Connect the Impulse
Open up Cubase
Navigate to ‘Studio’ > ‘Studio Setup’ > ‘MIDI Port Setup’.

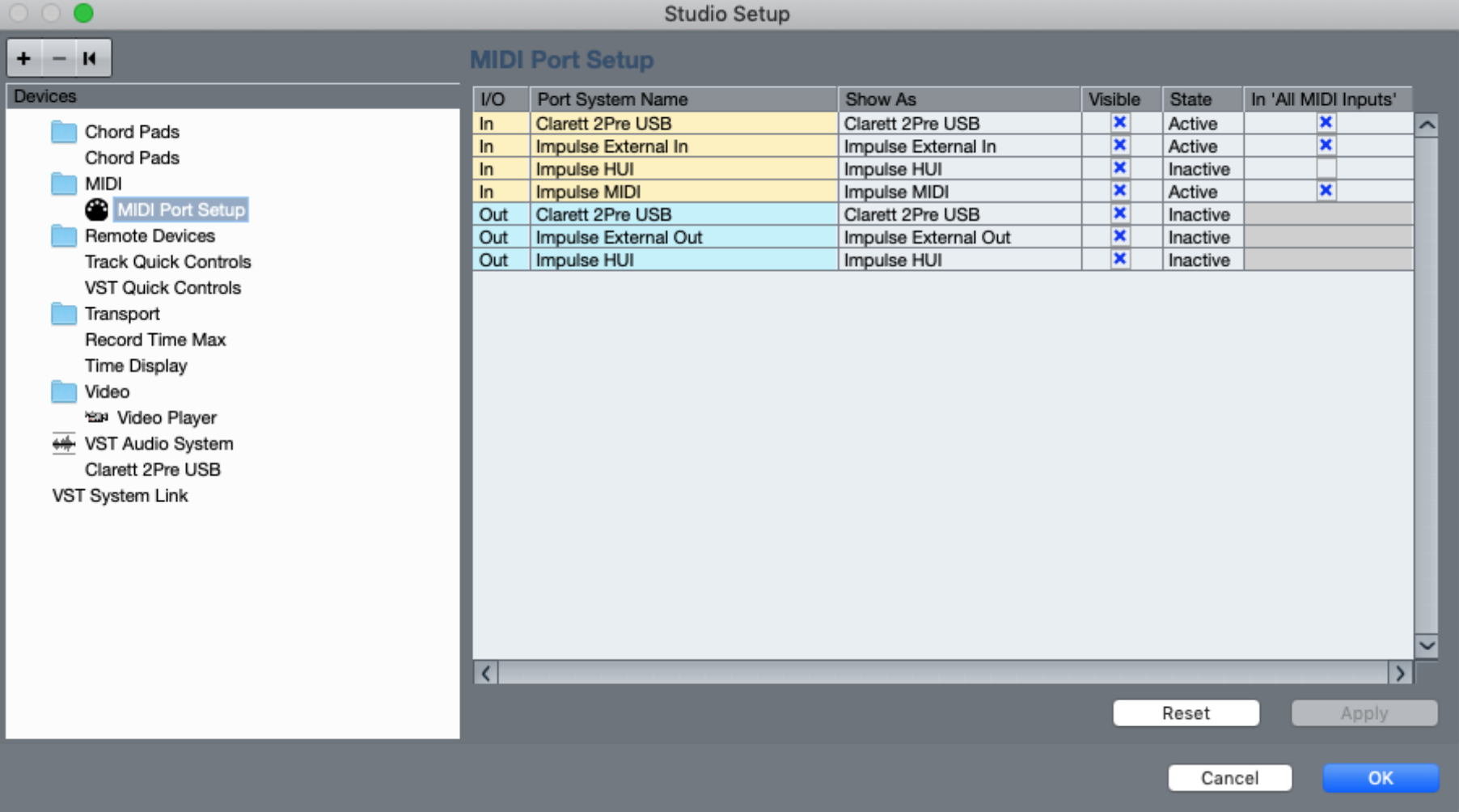

Set your ports as shown below, the ‘Impulse HUI’ port MUST NOT have “in ‘all MIDI ins’” enabled.


Then, click the small ‘+’ icon in the Cubase ‘Studio Setup’ window and select ‘Mackie HUI’.

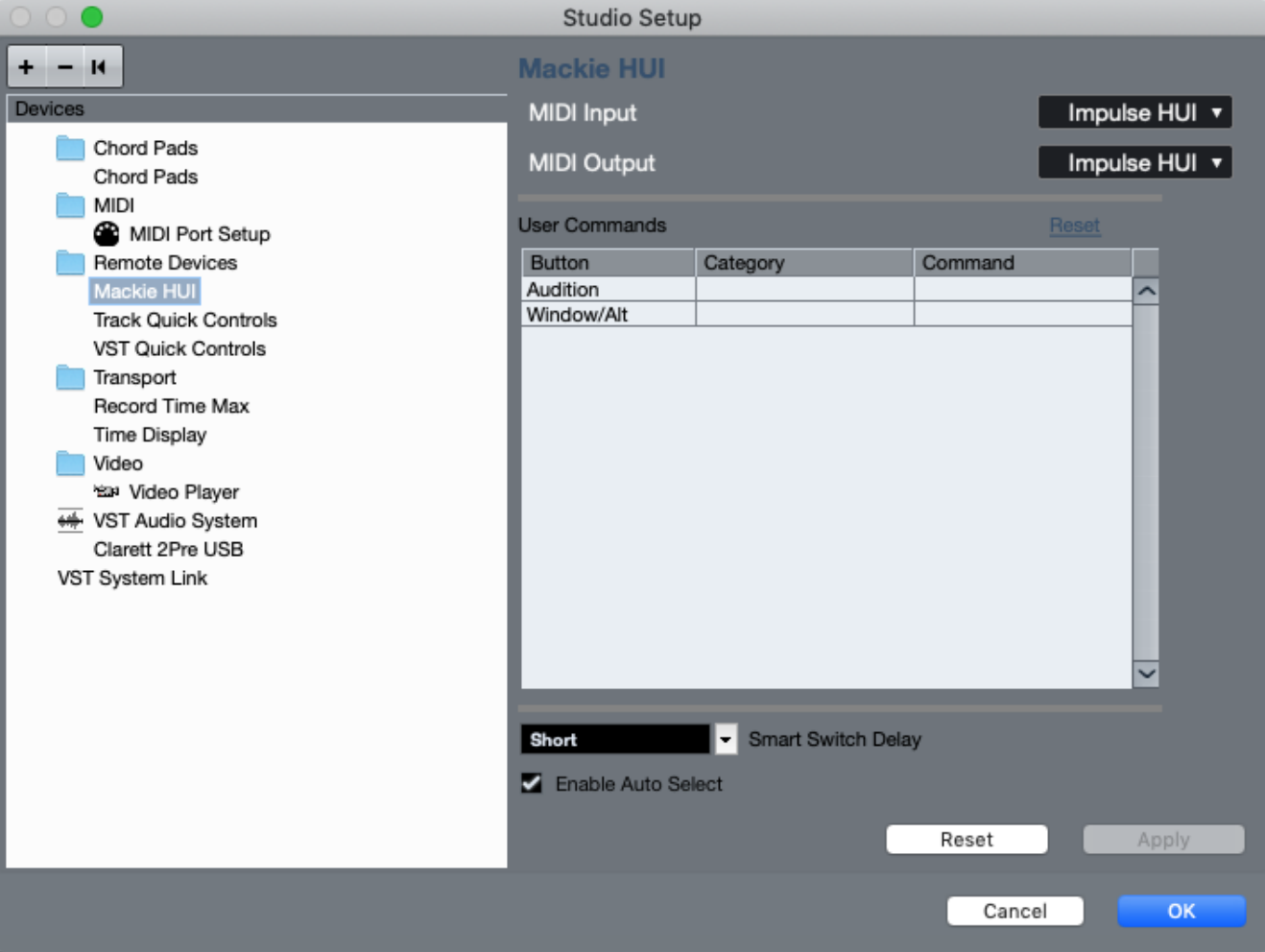

Now, in the ‘Mackie HUI’ tab, set the input and output port to ‘Impulse HUI’ as shown below.


The ‘Impulse HUI’ port may show as ‘MIDIIN3’/’MIDIOUT2’ or something similar on Windows.
