We recommend using the calibrate option found in the settings menu after updating your Peak firmware. This will ensure your patches sound as they should.
Before running the calibration, make sure the volume is fully down and any audio connections from the main outs or headphones are unplugged. Peak can generate tones and harmonics during the test that could potentially cause damage.
To calibrate your Peak, please follow these steps:
- Press the 'Settings' button to open the settings menu

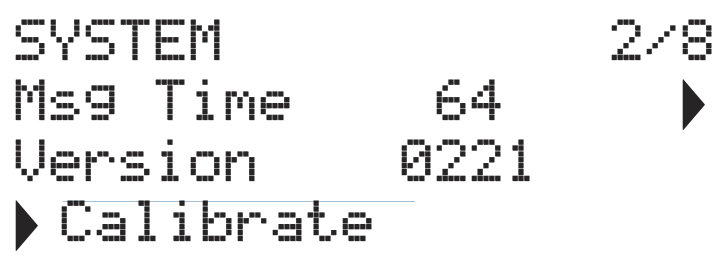

- On page 2 of the settings menu, you will see the screen display the following info:
- Pressing the button directly to the left of the 3rd row on screen initiates a calibration routine, setting up the filters, VCAs, and distortion circuitry accurately. The procedure takes several minutes, and the synth should not be touched while in progress. Note that the routine overrides the master volume control and sets it to maximum.
- When the calibration routine is complete, the display should show the following message on screen: “Calibration Complete Re-Power Now”
- Restart the device.
