Applies to: Bass Station II (AFX 4.14 Update)

The 4.14 update allows you to use overlays to change the patch settings per note. If you have any other questions about this update, please see this article:

Bass Station AFX 4.14 - FAQs

To clear an overlay bank, you can create a new empty overlay bank in Components and send it to Bass Station II.

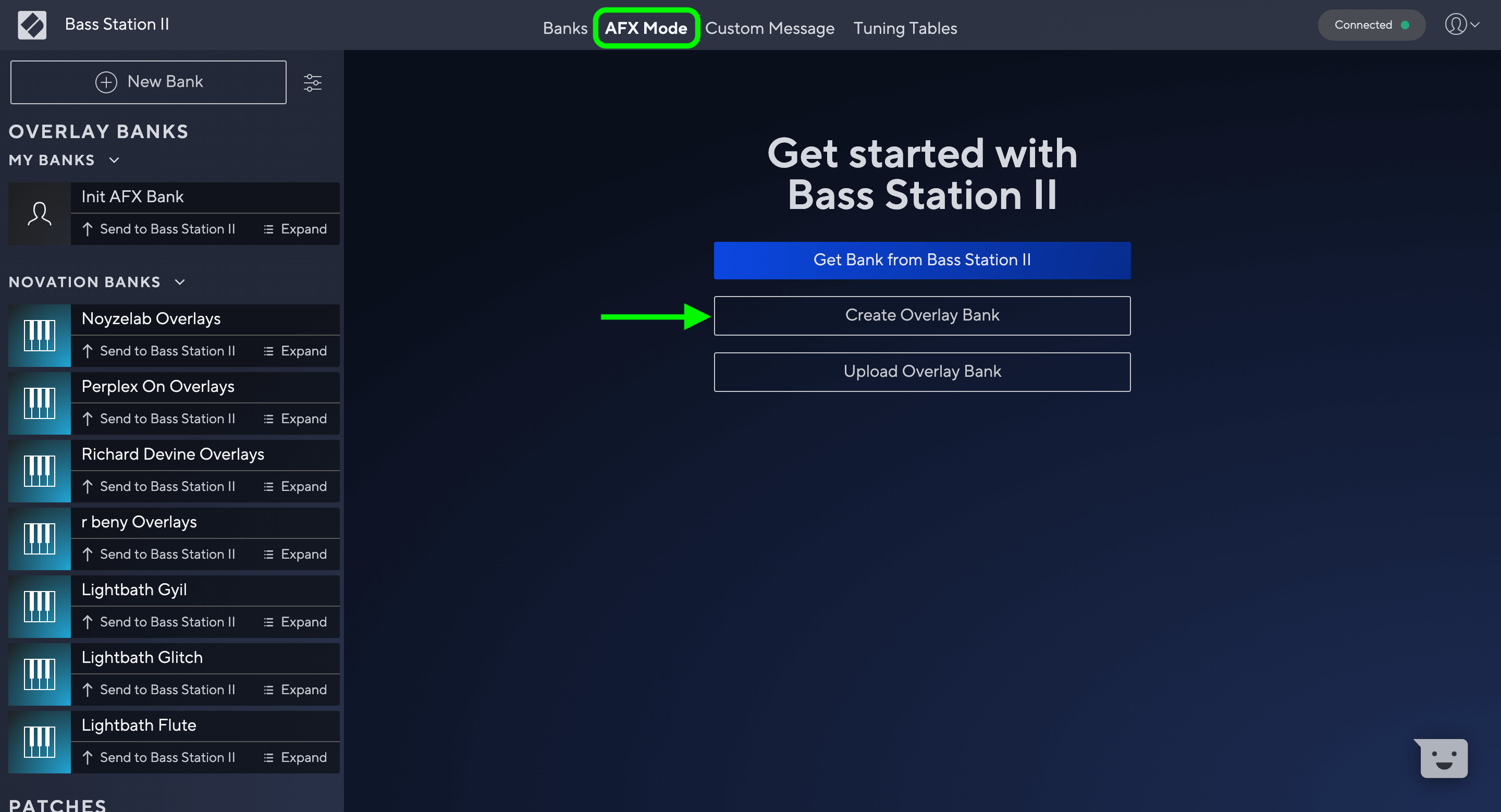

To do so, navigate to AFX Mode > Create Overlay Bank:

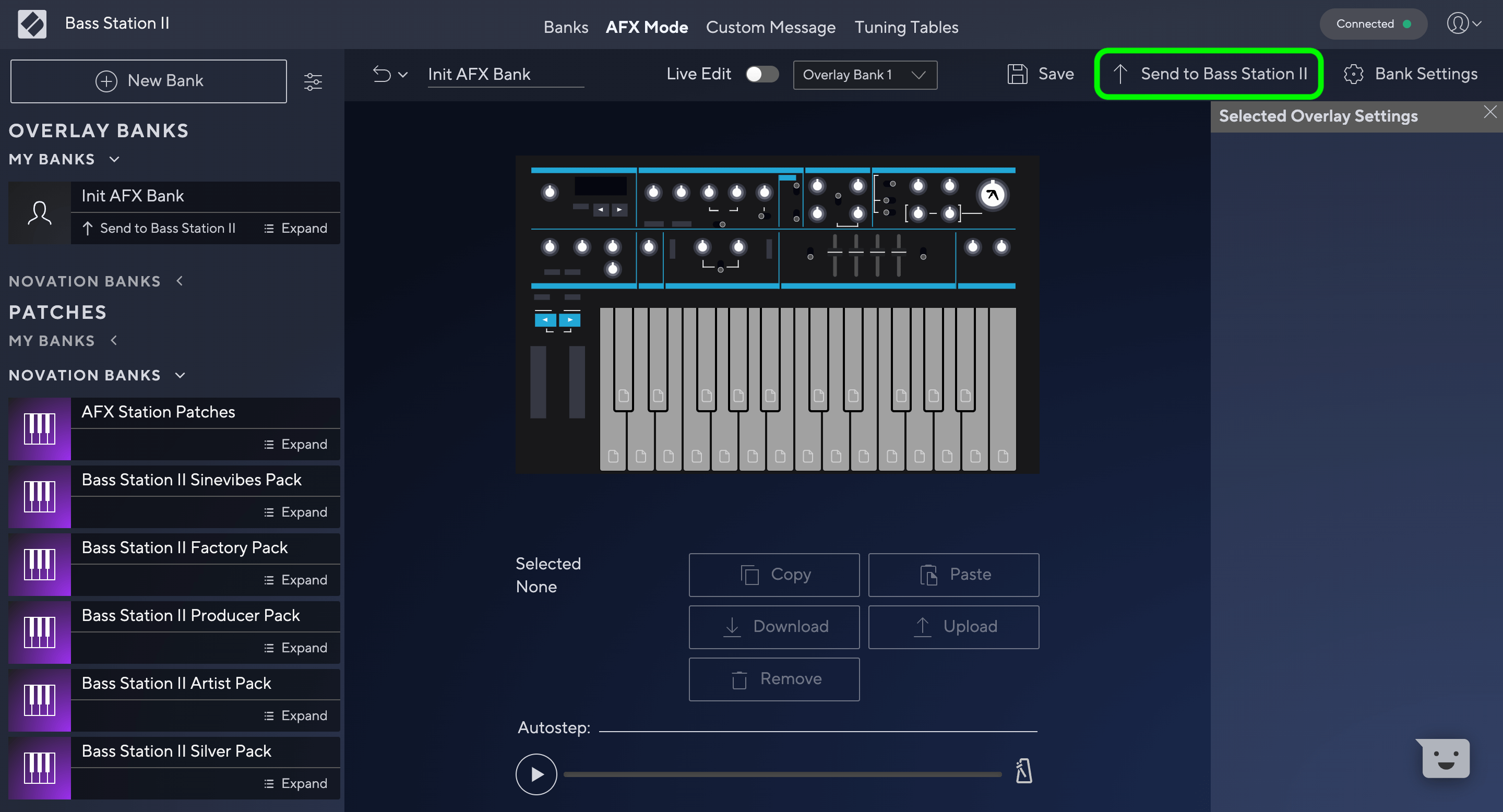

Click on Send to Bass Station II:

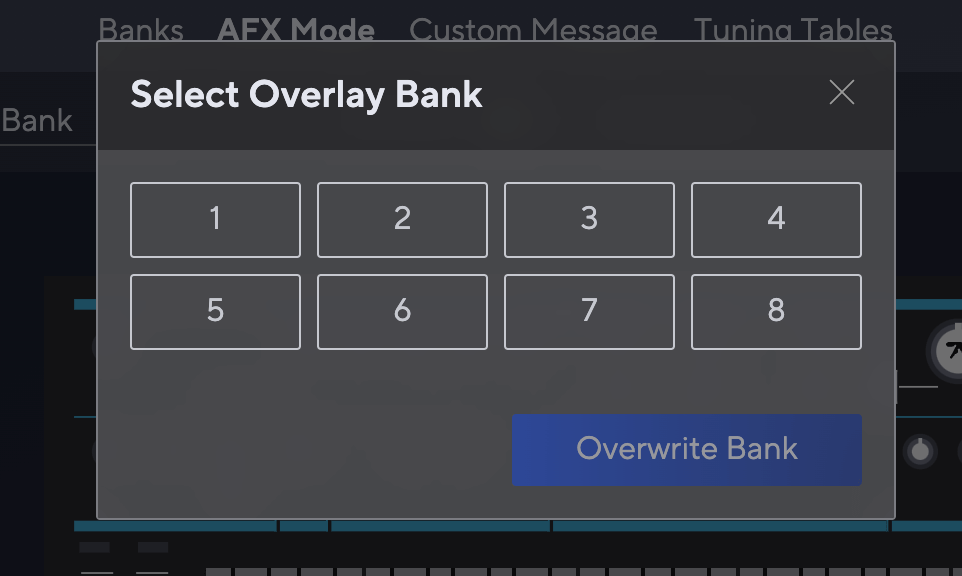

Then select the overlay bank slot you like to clear (1-8) and click on Overwrite Bank:

By default, overlays banks 1-4 are filled, banks 5-8 are “transparent” and you will hear the underlying patch.

If you would like to back up your overlays, this can be done either using Components:

Importing SysEx to Novation Components

Or using SysEx messages as detailed in the following article:

How to back up AFX Mode Overlays for the Bass Station II in SysEx Librarian
