Applies to Impulse
For further information on the functionality of the HUI update for the Impulse, please see here.
For instructions on updating the firmware please see our help center guides for Mac and Windows.
*Please note that Reaper version 5.941 or newer is required to work with the Impulse.
- Connect the Impulse
- Open up Reaper
- Navigate to ‘Options’ > ‘Preferences...’ > ‘MIDI Devices’.

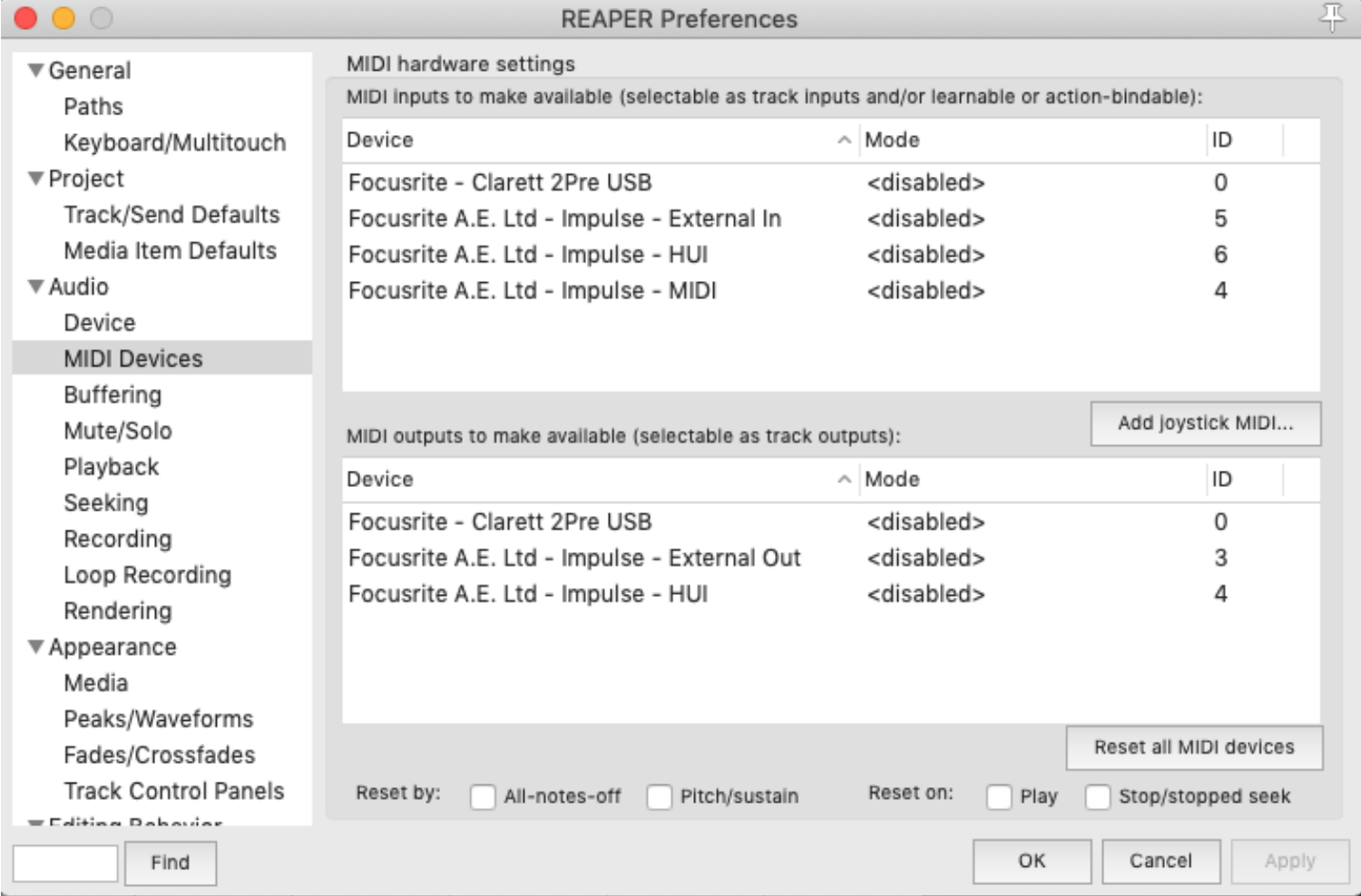

- Then, set your ports to ‘Focusrite A.E. Ltd. - Impulse HUI (MIDIIN3 for Windows), as shown below.
Please note that the ‘Focusrite A.E. Ltd. - Impulse HUI’ should not say ‘!! N/A...’ If this is the case please right-click the device and choose ‘Forget device’.
- Then, navigate to the ‘Control/OSC/web’ tab in the ‘Reaper Preferences’ window and click ‘Add’ to add a new control surface.

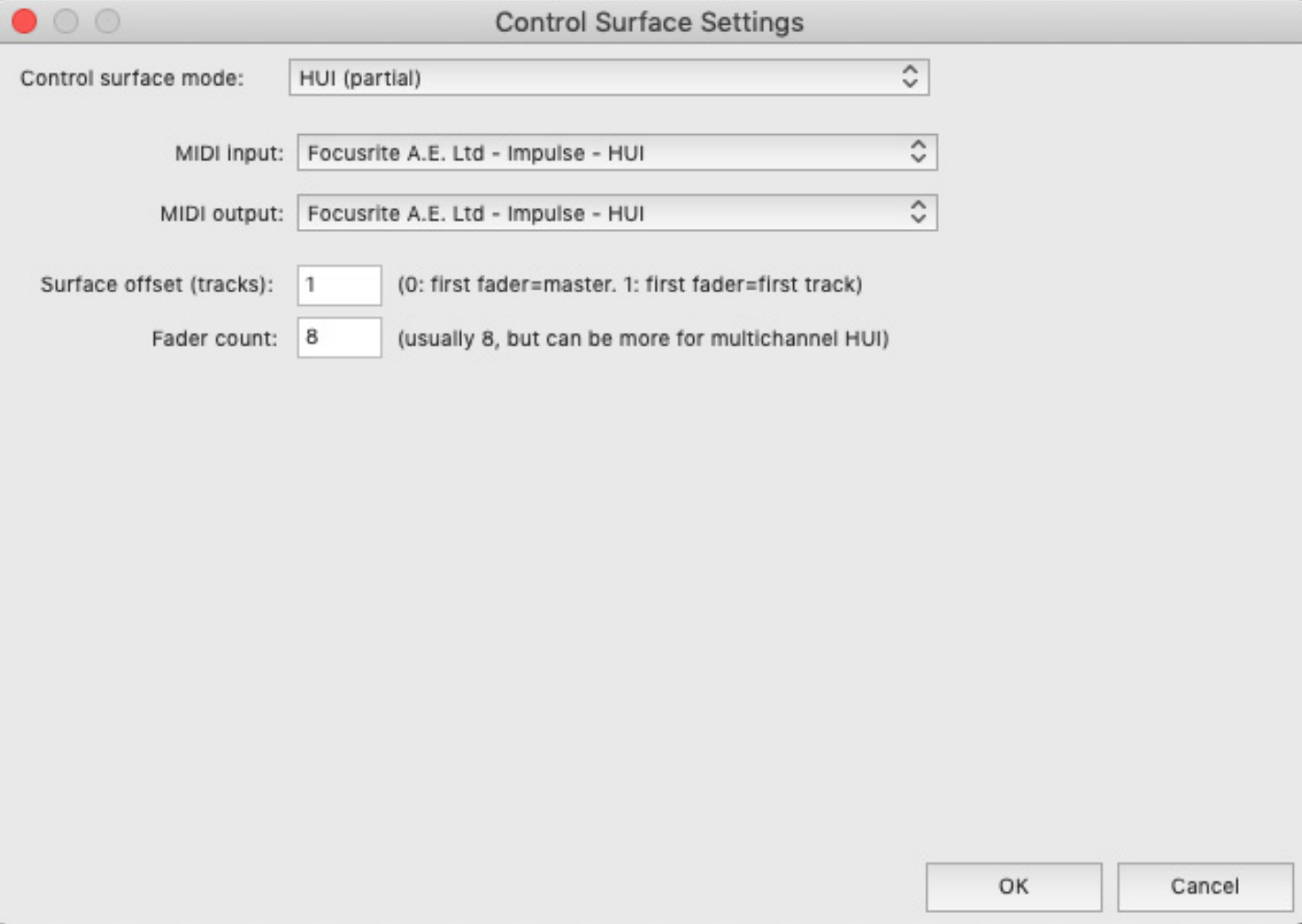

- Then, in the ‘Control Surface Settings’ window, set the Control surface mode to HUI (partial) and set the input and output port to ‘Focusrite A.E. Ltd. - Impulse HUI’ as shown below.
