Setting up Studio One with the Impulse HUI firmware update

Applies to Impulse

For further information on the functionality of the HUI update for the Impulse, please see here.

For instructions on updating the firmware, please see our help centre guides for Mac and Windows.

Connect the Impulse
Open up Studio One
Navigate to ‘Preferences’ > ‘External Devices’ and click ‘Add’ to add a new device.

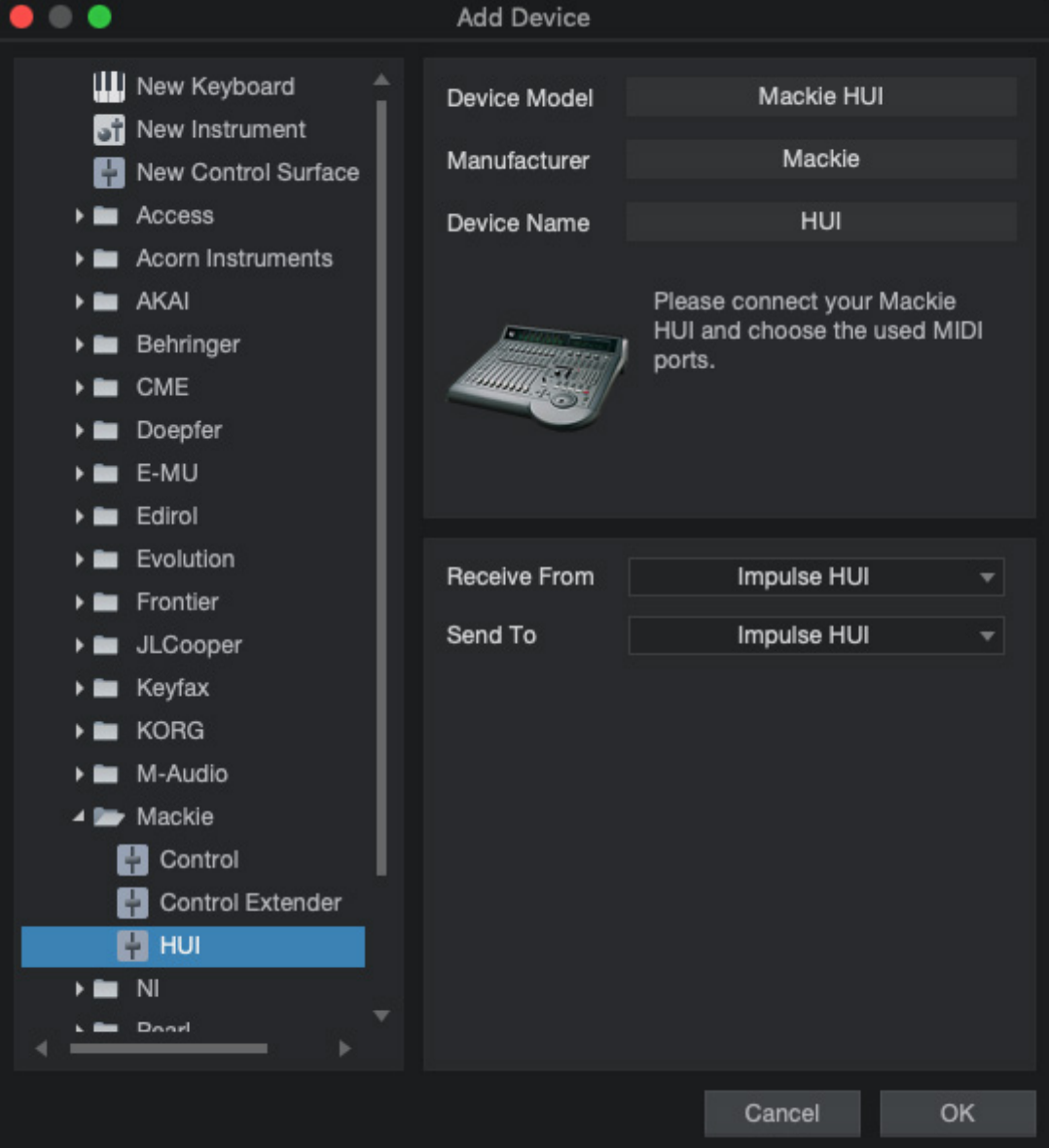

In the ‘Add Device’ window, select HUI under the Mackie folder and set Studio One to receive from ‘Impulse HUI’ and send to ‘Impulse HUI’ as shown below.


On Windows, Studio One should receive HUI messages through 'MIDIIN3' and send to 'MIDIOUT2'.

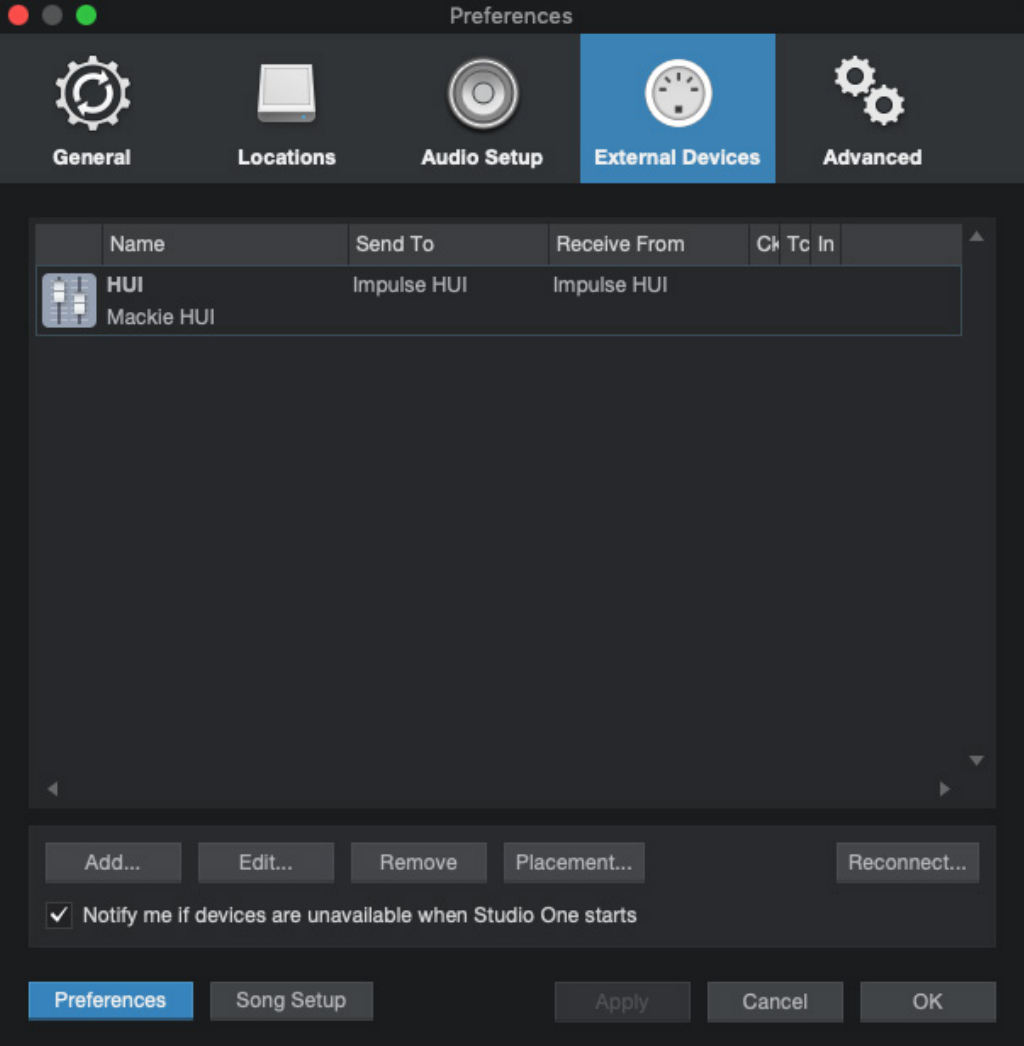

Then, press OK and the Preferences-External Devices Menu should look as shown below.
