Applies to: all Launchkey ranges
In Studio One, Launchkey must be set up in 3 different ways so that you make use of DAW Control, the Arpeggiator, and the Keyboard.
Launchkey MK1 and MK2 can be set up in the exact same way under 'New Keyboard' and 'New Control Surface', however, these don't feature an arpeggiator so they won't need to be set up under 'New Instrument'.
Windows
Keyboard
1. Connect Launchkey to your computer via USB and open Studio One.
2. Click the 'Studio One' menu at the top of the screen, then select' Options'.
3. Go to the 'External Devices' tab and click the 'Add' button.
4. Select the 'New Keyboard' option.

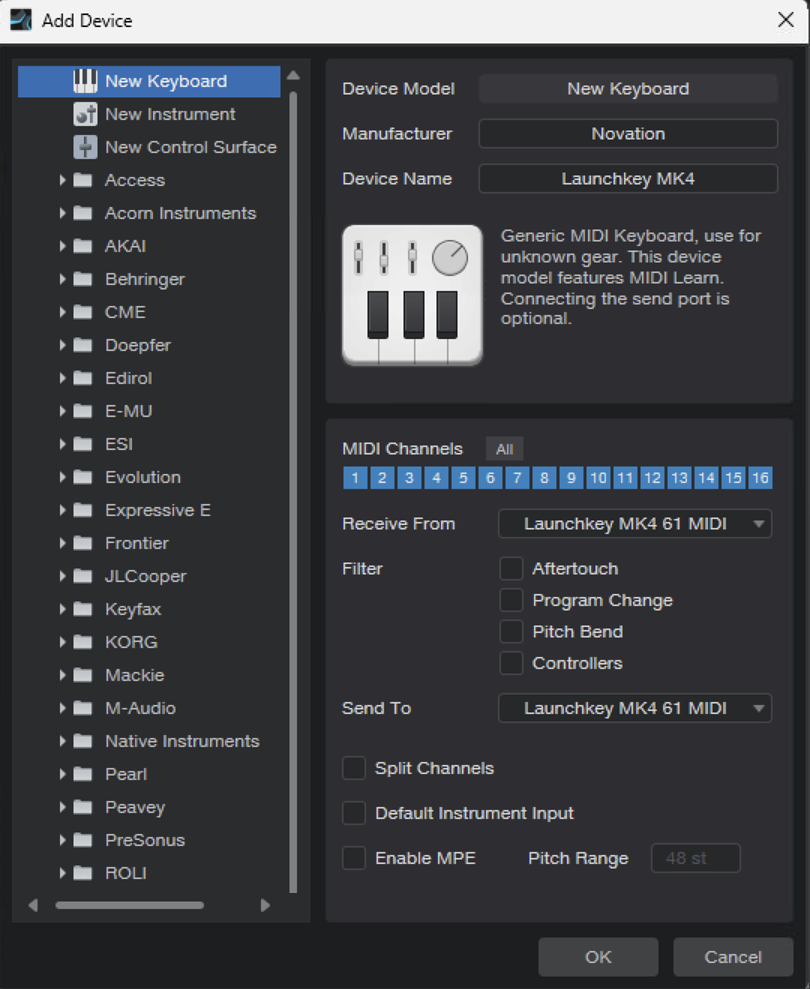

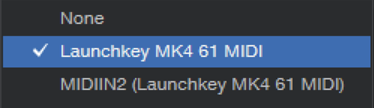

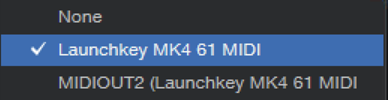

5. Set 'Receive From' and 'Send To' to the Launchkey's MIDI ports (first entries):
6. Click 'OK' at the bottom of the window.
Launchkey can now be used as a standard MIDI keyboard to record MIDI/instrument tracks.
DAW Control
1. Click the 'Studio One' menu at the top of the screen, then select 'Options'.
2. Go to the 'External Devices' tab and click the 'Add' button.
3. Select the 'Mackie > HUI' option on the left-hand side menu.

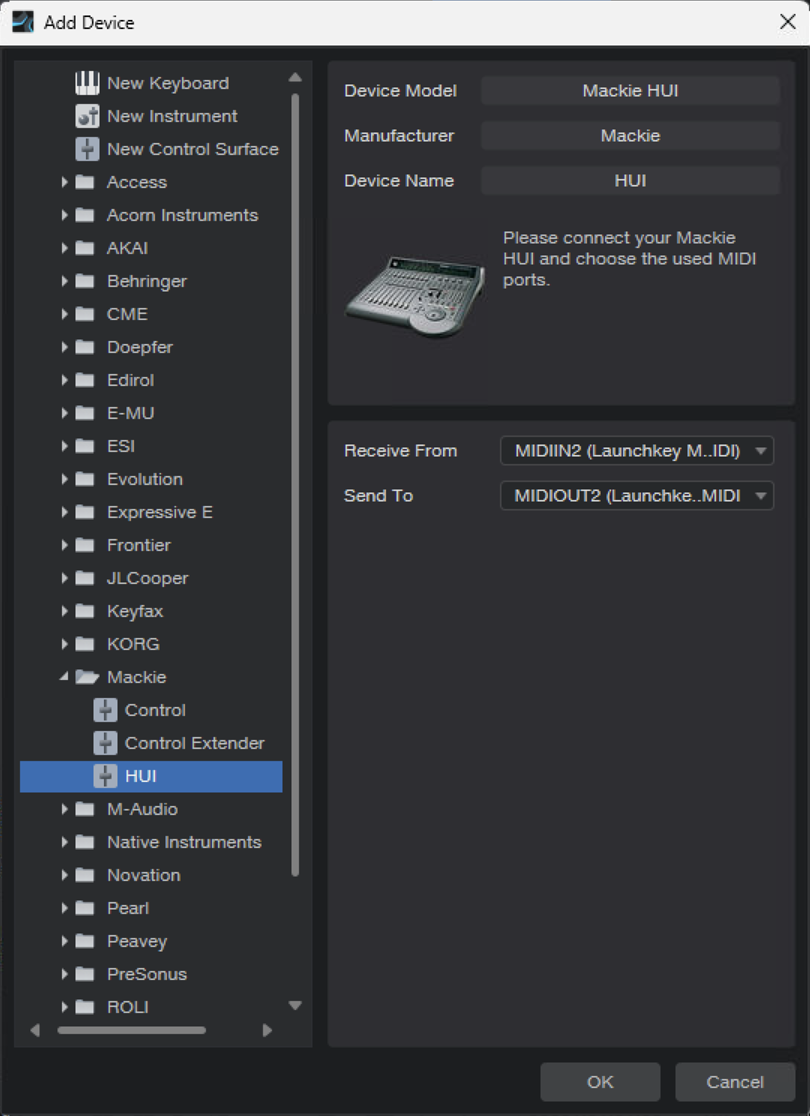

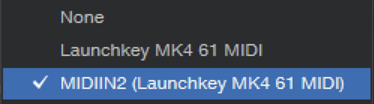

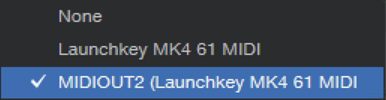

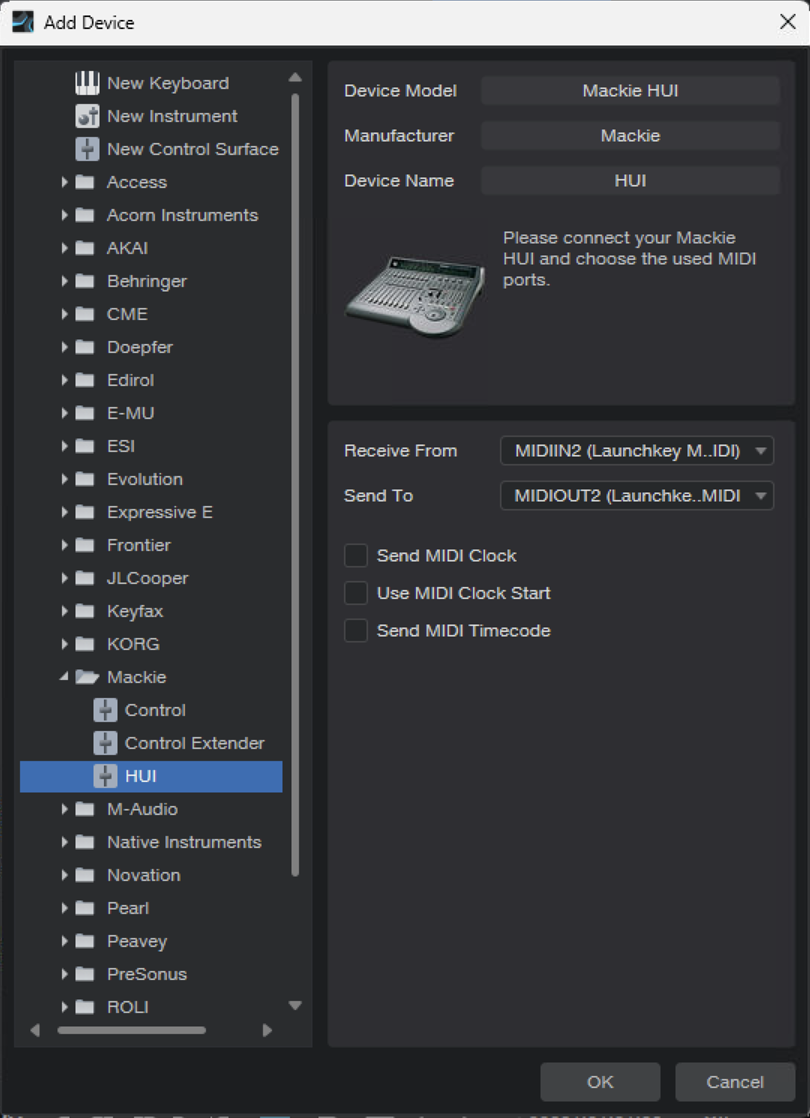

4. Set 'Receive From' and 'Send To' to the Launchkey's DAW ports (second entries) - these are labelled 'MIDIIN2' and 'MIDIOUT2' on Windows:
5. Click 'OK' at the bottom of the window.
You should now be able to record onto a MIDI/instrument track with the keyboard, as well as control the mixer using the faders/pots/encoders when they're set to Mixer/Volume/Pan mode.
Arpeggiator
The 'New Instrument' (Arpeggiator) section is not applicable for Launchkey MK1 and MK2.
1. Click the 'Studio One' menu at the top of the screen, then select' Options'.
2. Go to the 'External Devices' tab and click the 'Add' button.
3. Select the 'New Instrument' option.

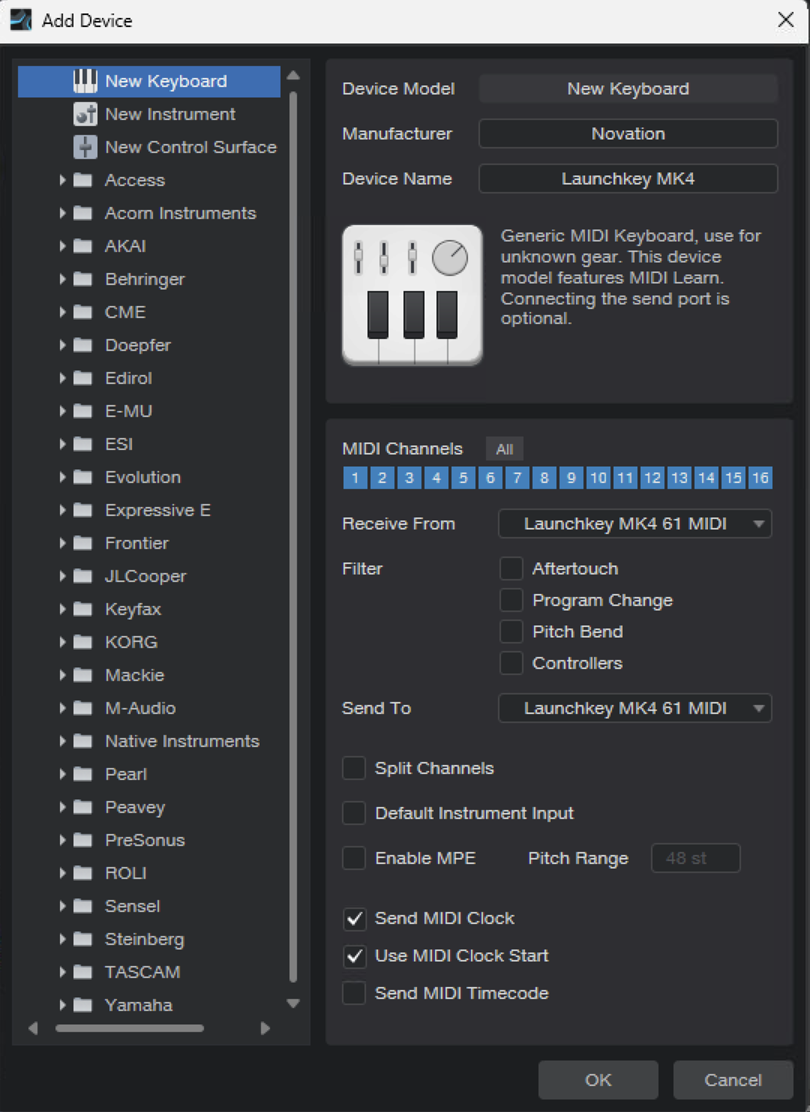

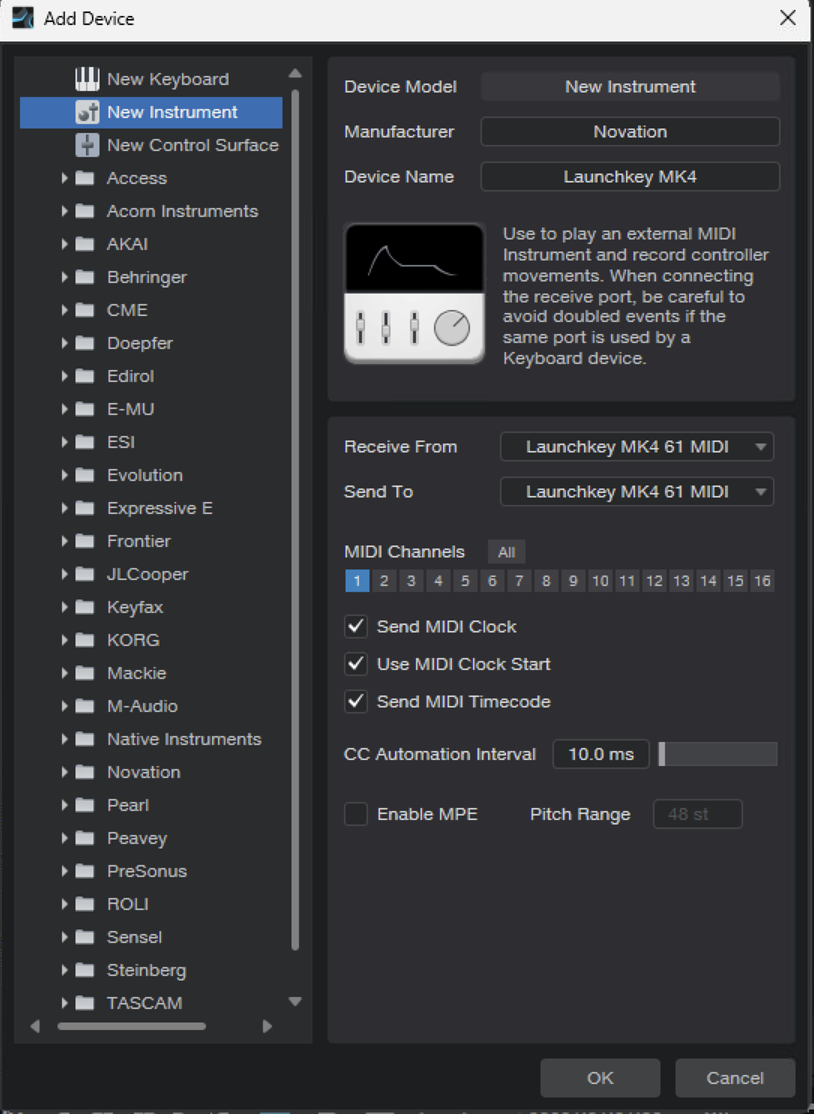

4. Set 'Receive From' and 'Send To' to the Launchkey's MIDI ports (first entries):
5. Be sure to enable Send MIDI Clock, Use MIDI Clock Start, and Send MIDI Timecode.
6. Click 'OK' at the bottom of the window.

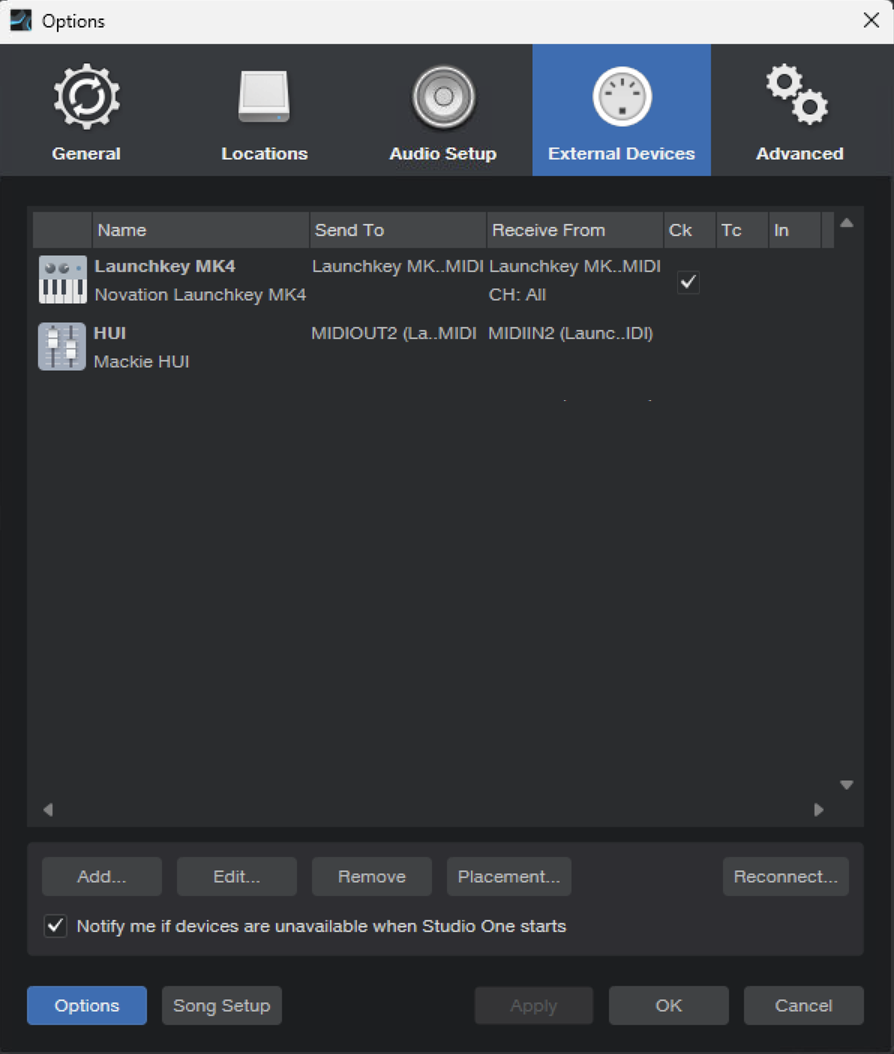

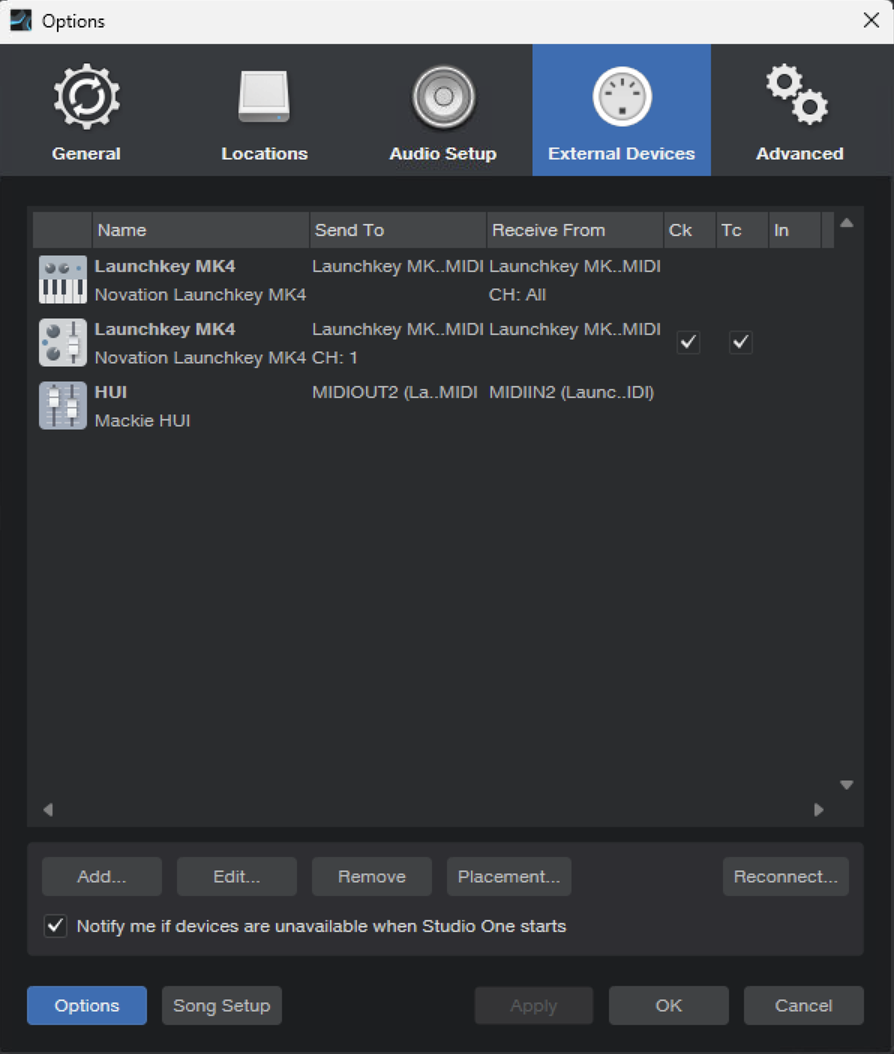

The three Launchkey entries will then appear as following in 'External Devices':
Mac
Keyboard
1. Connect Launchkey to your computer via USB and open Studio One.
2. Click the 'Studio One' menu at the top of the screen, then select 'Preferences'.
3. Go to the 'External Devices' tab and click the 'Add' button.
4. Select the 'New Keyboard' option.

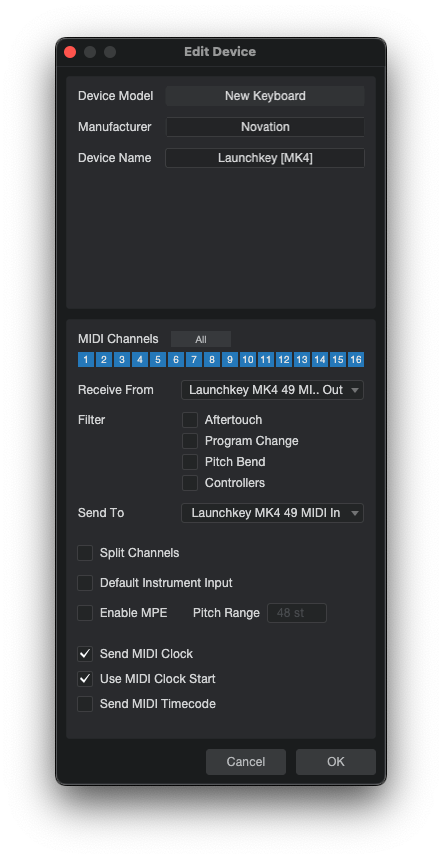

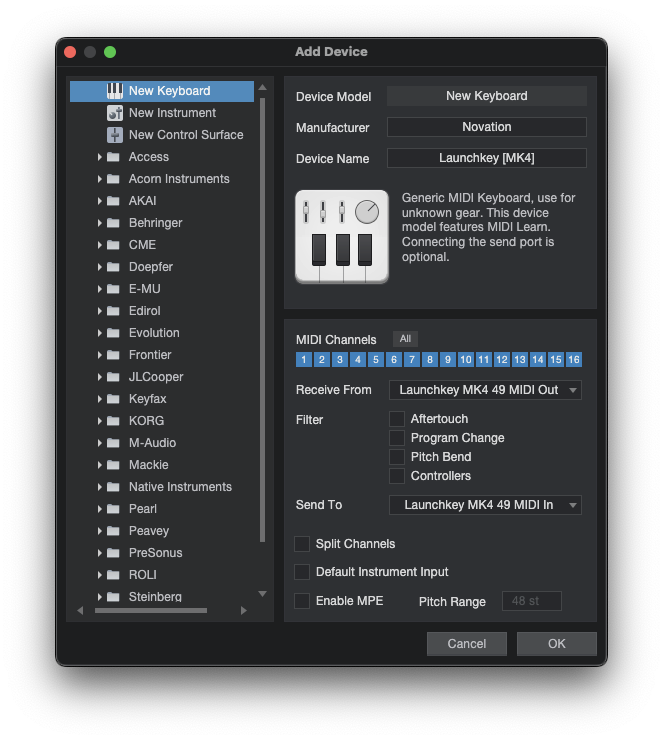

5. Set 'Receive From' and 'Send To' to the Launchkey's MIDI ports (first entries):
5. Click 'OK' at the bottom of the window.
The Launchkey can now be used as a standard MIDI keyboard to record MIDI/instrument tracks.
DAW Control
1. Click the 'Studio One' menu at the top of the screen, then select' Preferences'.
2. Go to the 'External Devices' tab and click the 'Add' button.
3. Select the 'Mackie > HUI' option on the left-hand side menu.

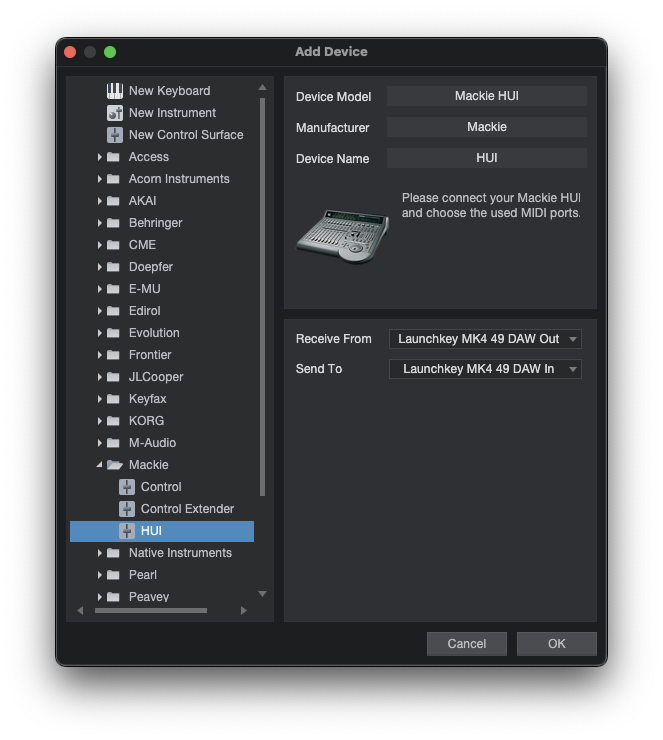

4. Set 'Receive From' and 'Send To' to the Launchkey's DAW ports (second entries) - these are labelled 'DAW' on Mac:
5. Click 'OK' at the bottom of the window.
You should now be able to record onto a MIDI/instrument track with the keyboard, as well as control the mixer using the faders/pots/encoders when they're set to Mixer/Volume/Pan mode.
Arpeggiator
The 'New Instrument' (Arpeggiator) section is not applicable for Launchkey MK1 and MK2.
1. Click the 'Studio One' menu at the top of the screen, then select' Preferences'.
2. Go to the 'External Devices' tab and click the 'Add' button.
3. Select the 'New Instrument' option.

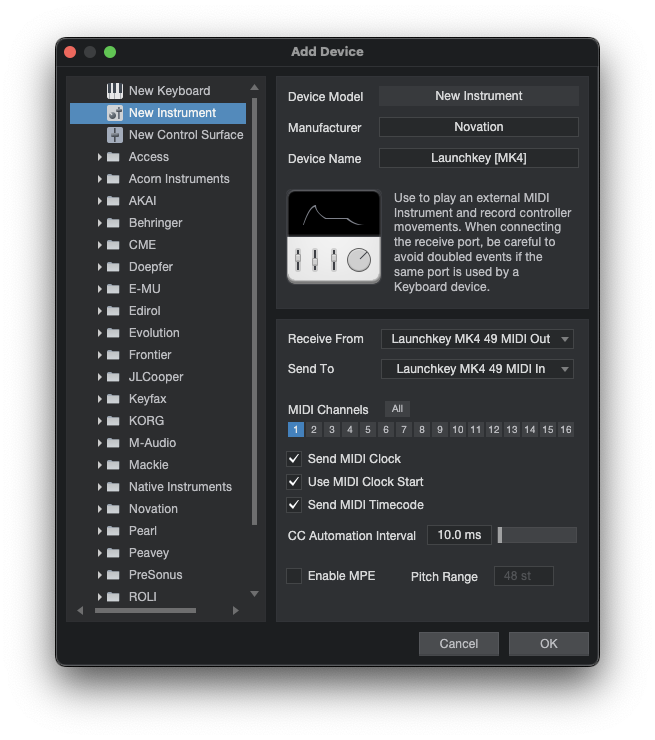

4. Set 'Receive From' and 'Send To' to the Launchkey's MIDI ports (first entries):
5. Be sure to enable Send MIDI Clock, Use MIDI Clock Start, and Send MIDI Timecode.
6. Click 'OK' at the bottom of the window.

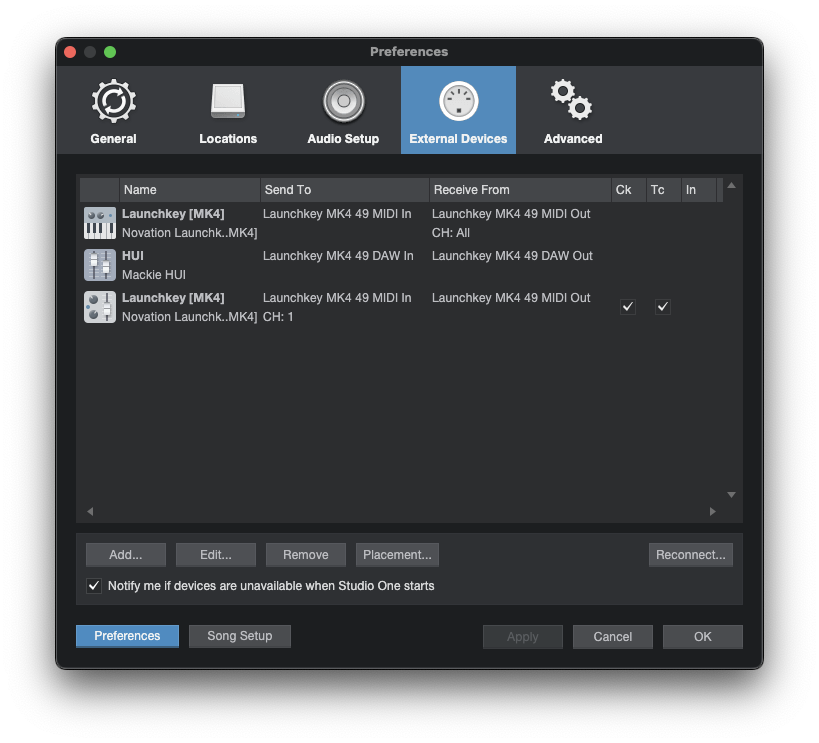

The three Launchkey entries will then appear as following in 'External Devices':
