Applies to: Launch Control [MK1]

You can use Components to manage the templates stored on Launch Control [MK1].

Components is a tool you can use manage the firmware and templates for many of our products. You can either download the standalone application when you register your SL MkIII to our customer portal, or you can access our web-based version in browsers that support web MIDI such as Chrome, Opera, and Microsoft Edge from this link: components.novationmusic.com.

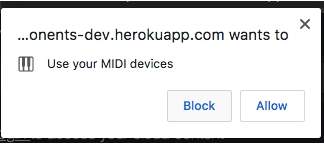

If you are using a browser, you may need to allow the page to access your MIDI devices, as prompted when first loading the page:

The top right of the page indicates the unit's connection status:

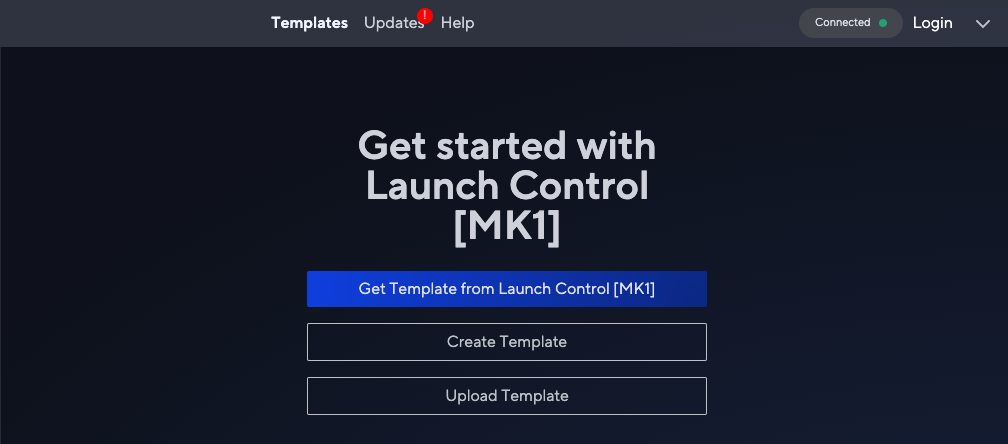

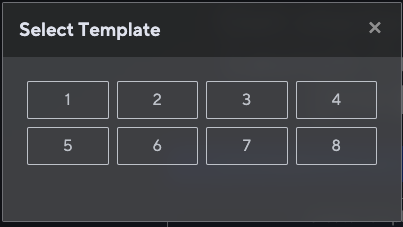

You can get a template from the Launch Control:

Or create a new one from scratch - this new template is the default User template that comes on the unit.

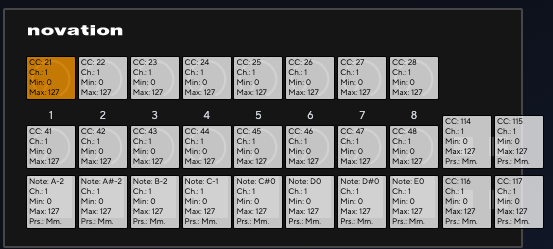

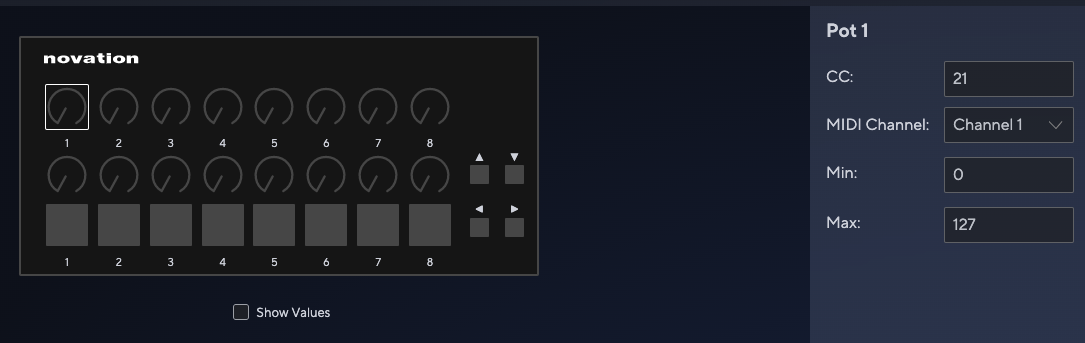

Select a control to view its settings on the right, or click “Show Values” to see the value of each control simultaneously:

When ready, you can send templates to the unit:

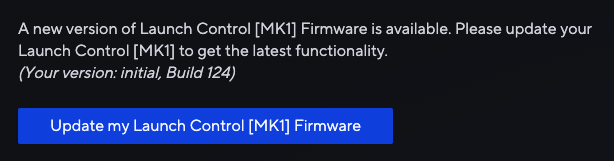

You can also update or reinstall the firmware for your Launch Control from the firmware tab:
